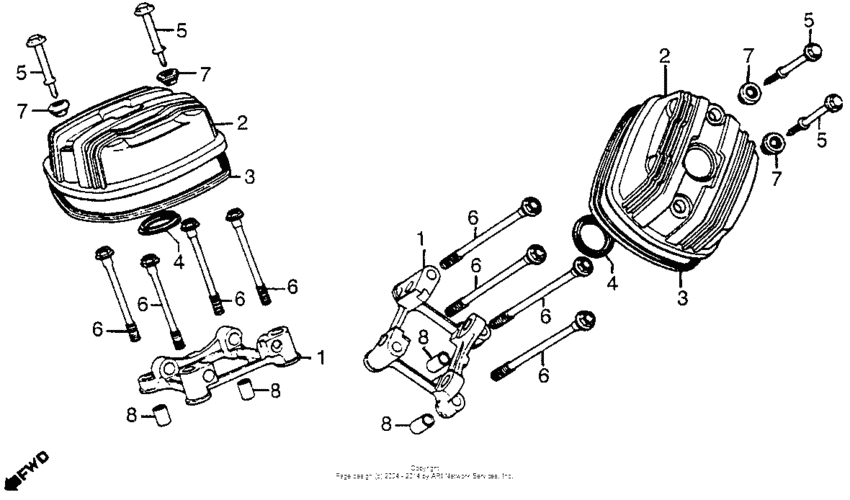

Cylinder head cover Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12215-ME7-000
Holder
|
12215-ME7-000 |
— | ||
|
1
|
1
12215-415-000
Superceded
|
12215-415-000 |
— | ||
| replacement | |||||
|
1
|
1
12215-ME7-000
Holder
|
12215-ME7-000 |
— | ||
|
2
|
2
12311-MC7-000
Cover, cylinder head
|
12311-MC7-000 |
— | ||
|
3
|
3
12328-415-000 Gasket, head cover |
12328-415-000 |
from US $13.87 |
||
|
4
|
4
12329-415-000 Gasket, plug hole |
12329-415-000 |
from US $5.03 |
||
|
5
|
5
90016-MC7-000
Bolt,special,6x60
|
90016-MC7-000 |
— | ||
|
6
|
6
90021-415-000
Bolt,flange12x150
|
90021-415-000 |
— | ||
|
7
|
7
90541-371-000 Rubber, setting |
90541-371-000 |
from US $7.25 |
||
|
8
|
8
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
