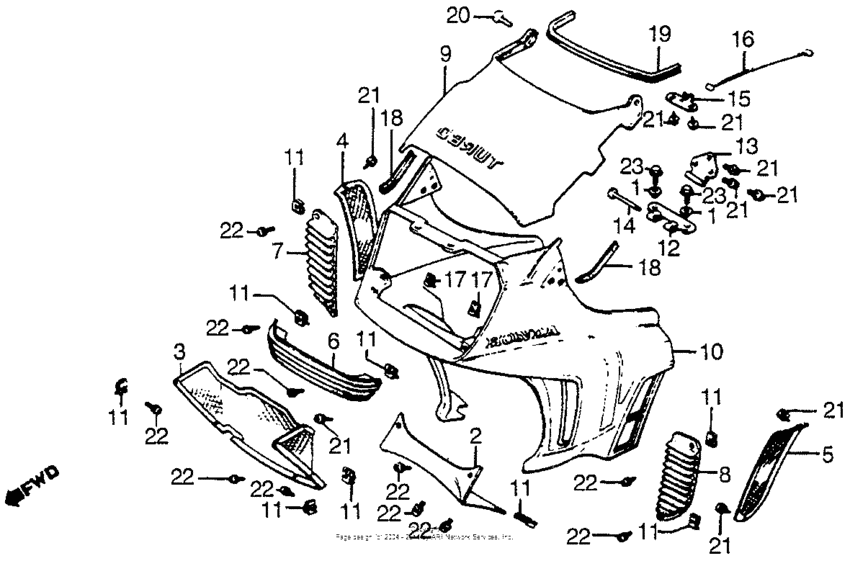

Fairing Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64106-MC7-000
Collar,wind scren
|
64106-MC7-000 |
— | ||
|
2
|
2
64214-MC7-000ZA
Cover*nh-113p-a*
|
64214-MC7-000ZA |
— | ||
|
3
|
3
64230-MC7-000
Grille,radiator
|
64230-MC7-000 |
— | ||
|
4
|
4
64231-MC7-000
Grille,r.outlet
|
64231-MC7-000 |
— | ||
|
5
|
5
64232-MC7-000
Grille,l.outlet
|
64232-MC7-000 |
— | ||
|
6
|
6
64233-MC7-000
Grille,fairing fr
|
64233-MC7-000 |
— | ||
|
7
|
7
64234-MC7-000
Grille,fairing r.
Use up to Frame SN 002811 |
64234-MC7-000 |
— | ||
|
7
|
7
64234-MC7-010
Gril faring,r,sid
Use from Frame SN 002812 |
64234-MC7-010 |
— | ||
|
8
|
8
64235-MC7-000
Grille,fairing l.
Use up to Frame SN 002811 |
64235-MC7-000 |
— | ||
|
8
|
8
64235-MC7-010
Gril fairing,l,si
Use from Frame SN 002812 |
64235-MC7-010 |
— | ||
|
9
|
9
64270-MC7-670ZA
Fairing *nh113pa*
|
64270-MC7-670ZA |
— | ||
|
10
|
10
64280-MC7-305ZA
Fairin*nh-113p-a*
|
64280-MC7-305ZA |
— | ||
|
11
|
11
64521-MC7-000 Nut, clip (4mm) |
64521-MC7-000 |
from US $3.84 |
||
| replacement | |||||
|
11
|
11
64527-KY2-700 Nut,clip,4mm |
64527-KY2-700 |
from US $3.11 |
||
|
11
|
11
64527-KY2-700 Nut,clip,4mm |
64527-KY2-700 |
from US $3.11 |
||
|
12
|
12
64522-MC7-000
Hinge a,bonnet
|
64522-MC7-000 |
— | ||
|
13
|
13
64523-MC7-000
Hinge b,bonnet
|
64523-MC7-000 |
— | ||
|
14
|
14
64524-MC7-000
Pin,bonnet hing
|
64524-MC7-000 |
— | ||
|
15
|
15
64527-MC7-000
Stay,bonnet stop.
|
64527-MC7-000 |
— | ||
|
16
|
16
64528-MC7-000
Stop.fair.bonnet
|
64528-MC7-000 |
— | ||
|
17
|
17
64529-MC7-000 Nut, clip (6mm) |
64529-MC7-000 |
US $3.40 |
||
|
18
|
18
64531-MC7-000
Rub,r.fairing
|
64531-MC7-000 |
— | ||
|
19
|
19
64533-MC7-000
Rub,top cover
|
64533-MC7-000 |
— | ||
|
20
|
20
90111-MC7-000
Screw,fairing inn
|
90111-MC7-000 |
— | ||
|
21
|
21
93891-040-100-7 Screw-washer4X10 |
93891-040-100-7 |
from US $0.44 |
||
|
21
|
21
93891-040-100-8 Screw-washer4X10 |
93891-040-100-8 |
from US $0.44 |
||
|
22
|
22
93891-040-120-7 Screw-washer4X12 |
93891-040-120-7 |
from US $0.44 |
||
|
23
|
23
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
