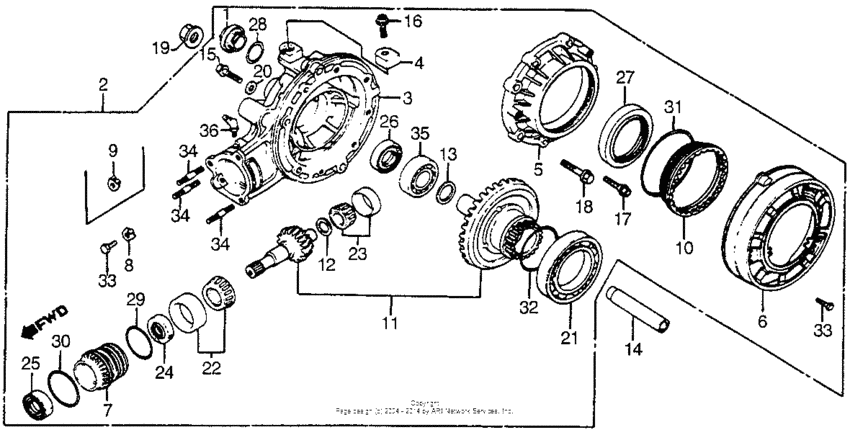

Final driven gear Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
2
|
2
41300-MC7-000
Gear,final driven
|
41300-MC7-000 |
— | ||
|
3
|
3
41301-MC7-000
Case, final gear
|
41301-MC7-000 |
— | ||
|
4
|
4
41306-MC7-000
Cap,breather
Use from Frame SN 000017 |
41306-MC7-000 |
— | ||
|
4
|
4
41306-463-000
Cap,breather
Use up to Frame SN 000016 |
41306-463-000 |
— | ||
|
5
|
5
41321-MC7-000
Cover, l. gear case
|
41321-MC7-000 |
— | ||
|
6
|
6
41324-MC7-000
Plate, dust guard
Use from Frame SN 000017 |
41324-MC7-000 |
— | ||
|
6
|
6
41324-415-000
Plate,dust guard
Use up to Frame SN 000016 |
41324-415-000 |
— | ||
|
7
|
7
41331-MC7-000
Retainer b, bearing
|
41331-MC7-000 |
— | ||
|
8
|
8
41332-MC7-000
Lock a, bearing adj.
|
41332-MC7-000 |
— | ||
|
9
|
9
41333-MC7-000
Lock b, bearing adj.
|
41333-MC7-000 |
— | ||
|
10
|
10
41351-371-000 Retainer,a.brg. |
41351-371-000 |
US $77.86 |
||
|
11
|
11
41310-MC7-305
Gear set,final
|
41310-MC7-305 |
— | ||
|
12
|
12
41450-415-000
Shim a,pinion
|
41450-415-000 |
— | ||
|
12
|
12
41451-415-000
Shim b,pinion
|
41451-415-000 |
— | ||
|
12
|
12
41452-415-000
Shim c,pinion
|
41452-415-000 |
— | ||
|
12
|
12
41453-415-000
Shim d,pinion
|
41453-415-000 |
— | ||
|
12
|
12
41454-415-000
Shim e,pinion
|
41454-415-000 |
— | ||
|
12
|
12
41455-415-000
Shim f,pinion
|
41455-415-000 |
— | ||
|
12
|
12
41456-415-000
Shim g,pinion
|
41456-415-000 |
— | ||
|
12
|
12
41457-415-000
Shim h,pinion
|
41457-415-000 |
— | ||
|
12
|
12
41458-415-000
Shim i,pinion
|
41458-415-000 |
— | ||
|
12
|
12
41459-415-000
Shim j,pinion
|
41459-415-000 |
— | ||
|
12
|
12
41460-415-000
Shim k,pinion
|
41460-415-000 |
— | ||
|
12
|
12
41461-415-000
Shim l,pinion
|
41461-415-000 |
— | ||
|
12
|
12
41462-415-000
Shim,m,pinion
|
41462-415-000 |
— | ||
|
12
|
12
41463-415-000
Shim n,pinion
|
41463-415-000 |
— | ||
|
12
|
12
41464-415-000
Shim o,pinion
|
41464-415-000 |
— | ||
|
12
|
12
41465-415-000
Shim p,pinion
|
41465-415-000 |
— | ||
|
12
|
12
41466-415-000
Shim q,pinion
|
41466-415-000 |
— | ||
|
12
|
12
41467-415-000
Shim r,pinion
|
41467-415-000 |
— | ||
|
12
|
12
41468-415-000
Shim s,pinion
|
41468-415-000 |
— | ||
|
12
|
12
41469-415-000
Shim t,pinion
|
41469-415-000 |
— | ||
|
12
|
12
41470-415-000
Shim u,pinion
|
41470-415-000 |
— | ||
|
13
|
13
41510-415-000
Shim a, ring gear
|
41510-415-000 |
— | ||
|
13
|
13
41511-415-000
Shim b, ring gear
|
41511-415-000 |
— | ||
|
13
|
13
41512-415-000
Shim c, ring gear
|
41512-415-000 |
— | ||
|
13
|
13
41513-415-000
Shim d, ring gear
|
41513-415-000 |
— | ||
|
13
|
13
41514-415-000
Shim e (1.96)
|
41514-415-000 |
— | ||
|
13
|
13
41515-415-000
Shim f, ring gear
|
41515-415-000 |
— | ||
|
13
|
13
41516-415-000
Shim g (2.04)
|
41516-415-000 |
— | ||
|
13
|
13
41517-415-000
Shim h, ring gear
|
41517-415-000 |
— | ||
|
13
|
13
41518-415-000
Shim i, ring gear
|
41518-415-000 |
— | ||
|
13
|
13
41519-415-000
Shim j, ring gear
|
41519-415-000 |
— | ||
|
13
|
13
41520-415-000
Shim k, ring gear
|
41520-415-000 |
— | ||
|
13
|
13
41521-415-000
Shim l, ring gear
|
41521-415-000 |
— | ||
|
13
|
13
41522-415-000
Shim m (2.28)
|
41522-415-000 |
— | ||
|
13
|
13
41523-415-000
Shim n, ring gear
|
41523-415-000 |
— | ||
|
14
|
14
42623-MC7-000
Collar,rr.axle
|
42623-MC7-000 |
— | ||
|
15
|
15
90109-371-000 Bolt, sealing, 8mm |
90109-371-000 |
from US $3.63 |
||
|
16
|
16
90126-MC7-000
Bolt,breather
Use from Frame SN 000017 |
90126-MC7-000 |
— | ||
|
16
|
16
90126-415-000
Bolt,breather
Use up to Frame SN 000016 |
90126-415-000 |
— | ||
|
17
|
17
90133-371-000
Bolt,flange,8x32
|
90133-371-000 |
— | ||
|
18
|
18
90134-371-000 Bolt, flange (10x38) |
90134-371-000 |
US $6.94 |
||
|
19
|
19
90305-MC0-003 Nut, rr. (16mm) |
90305-MC0-003 |
US $6.36 |
||
|
20
|
20
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
|
21
|
21
91051-371-004
B/brg rad n/com
|
91051-371-004 |
— | ||
|
22
|
22
91061-463-008 R/brg tap n/com |
91061-463-008 |
US $42.89 |
||
|
23
|
23
91121-PH8-961 BearingTAPER, 30203 |
91121-PH8-961 |
US $16.32 |
||
|
24
|
24
91261-463-013
Oil seal 30x51x10
|
91261-463-013 |
— | ||
|
25
|
25
91262-415-003
Oil seal,33x43x7
|
91262-415-003 |
— | ||
|
26
|
26
91264-415-003
Oil seal,30x47x7
|
91264-415-003 |
— | ||
|
27
|
27
91265-371-003
Oil seal, 70x90x8
|
91265-371-003 |
— | ||
|
28
|
28
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
29
|
29
91353-463-005
O-ring,57x4.3
|
91353-463-005 |
— | ||
|
30
|
30
91354-463-003
O-ring 60.5x2.4
|
91354-463-003 |
— | ||
|
31
|
31
91355-371-003
O-ring, 96.5x2.0
|
91355-371-003 |
— | ||
|
32
|
32
91356-415-003
O-ring, 62.7x4
|
91356-415-003 |
— | ||
|
33
|
33
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
33
|
33
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
33
|
33
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
34
|
34
92700-10055-0E
Bolt,stud,10x55
|
92700-10055-0E |
— | ||
|
35
|
35
96100-6006300 Bearing (6006) |
96100-6006300 |
from US $9.18 |
||
|
36
|
36
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
||
