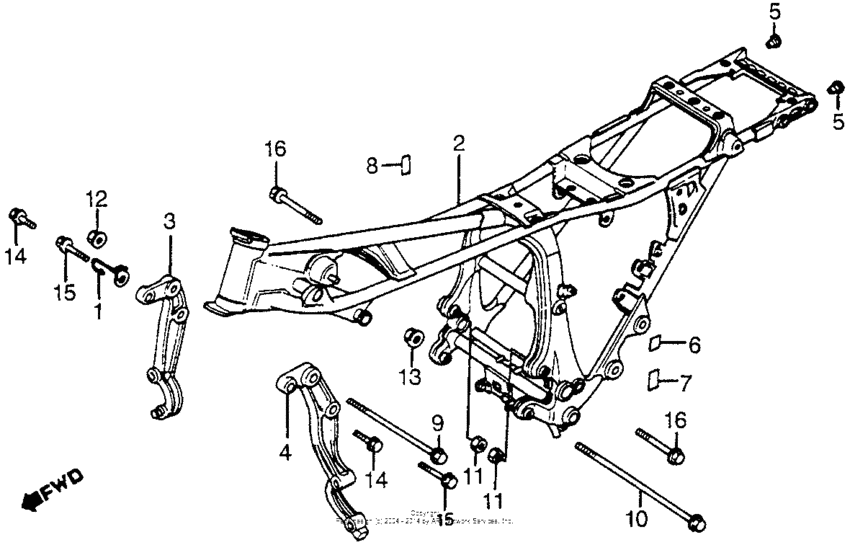

Frame Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17356-MC7-000
Clip b,brthr.tube
|
17356-MC7-000 |
— | ||
|
2
|
2
50100-MC7-000ZA
Frame *nh1*
|
50100-MC7-000ZA |
— | ||
|
3
|
3
50311-MC7-000 Brkt, r. fr. eng hgr |
50311-MC7-000 |
US $195.57 |
||
|
4
|
4
50321-MC7-000
Brkt, l. fr. eng hgr
|
50321-MC7-000 |
— | ||
|
5
|
5
84105-MC7-000
Cap,upper pipe
|
84105-MC7-000 |
— | ||
|
6
|
6
87506-MC7-610
Mark,bat.caution
|
87506-MC7-610 |
— | ||
|
7
|
7
87508-MA1-770
Mark,rad.caution
|
87508-MA1-770 |
— | ||
|
8
|
8
87518-MC7-610
Label,rr.cush.
|
87518-MC7-610 |
— | ||
|
9
|
9
90109-MC7-000 Bolt,hex.,10x212 |
90109-MC7-000 |
US $17.32 |
||
|
10
|
10
90110-415-000
Bolt,flange12x308
|
90110-415-000 |
— | ||
|
11
|
11
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
12
|
12
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
13
|
13
94050-12000 Nut, flange, 12mm |
94050-12000 |
from US $0.81 |
||
|
14
|
14
95701-100-200-0 BoltFLANGE, 10X20 |
95701-100-200-0 |
from US $0.74 |
||
|
15
|
15
95801-100-400-8 BoltFLANGE, 10X40 |
95801-100-400-8 |
from US $0.81 |
||
|
15
|
15
96400-100-400-8 Bolt,flange,10x40 |
96400-100-400-8 |
US $0.89 |
||
|
16
|
16
95801-100-700-0 Bolt, flange (10x70) |
95801-100-700-0 |
from US $1.18 |
