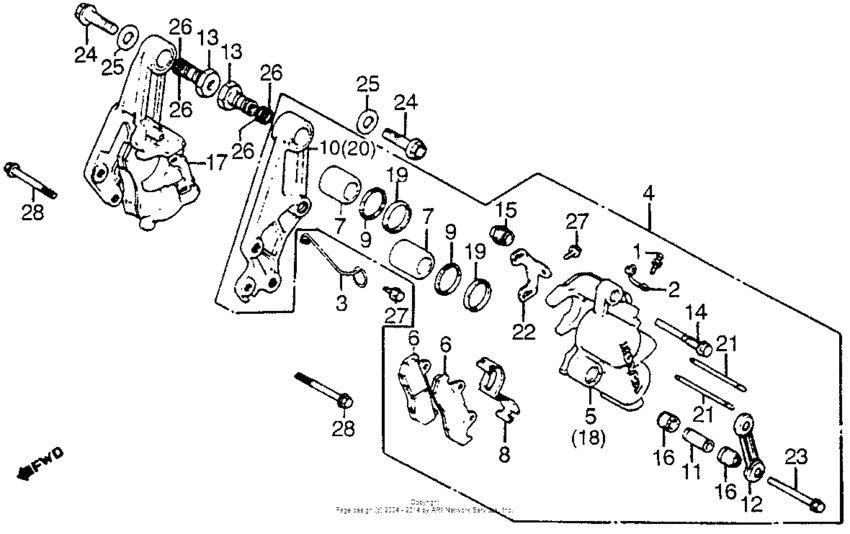

Front brake caliper Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
451A0-MC7-670 Set brake pad |
451A0-MC7-670 |
US $51.17 |
||
|
1
|
1
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
2
|
2
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
3
|
3
44833-MC7-000
Clamp,spdmt,cable
|
44833-MC7-000 |
— | ||
|
4
|
4
45100-MC7-016
Caliper assy,l.fr
|
45100-MC7-016 |
— | ||
|
5
|
5
45101-MA3-006
Caliper comp.,l.
|
45101-MA3-006 |
— | ||
|
6
|
6
45105-KL8-014 Pad comp.,fr.(jb) |
45105-KL8-014 |
from US $37.04 |
||
|
7
|
7
45107-MA3-006 Piston |
45107-MA3-006 |
from US $32.64 |
||
|
8
|
8
45108-MA3-006 Spring, pad |
45108-MA3-006 |
from US $7.40 |
||
|
9
|
9
45109-166-006 Dust seal |
45109-166-006 |
from US $4 |
||
|
10
|
10
45110-MC7-006
Brkt.comp,l.fr.
|
45110-MC7-006 |
— | ||
|
11
|
11
45111-MA3-006 Sleeve |
45111-MA3-006 |
from US $8.73 |
||
|
12
|
12
45113-MC7-610
Bridge,caliper
|
45113-MC7-610 |
— | ||
|
13
|
13
45114-MC7-611
Sleeve,fr.bracket
|
45114-MC7-611 |
— | ||
|
14
|
14
45131-MA3-006 Pin, bolt |
45131-MA3-006 |
from US $11.99 |
||
|
15
|
15
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
16
|
16
45133-166-016 Boot, pin |
45133-166-016 |
from US $3.18 |
||
|
17
|
17
45200-MC7-016
Caliper, r. fr.
|
45200-MC7-016 |
— | ||
|
18
|
18
45201-MA3-006
Caliper comp.,r.
|
45201-MA3-006 |
— | ||
|
19
|
19
45209-166-006 SealPISTON |
45209-166-006 |
from US $4.07 |
||
|
20
|
20
45210-MC7-006
Brkt.comp,r.fr.
|
45210-MC7-006 |
— | ||
|
21
|
21
45215-MA3-006 Pin (4.0mm) |
45215-MA3-006 |
from US $7.40 |
||
|
22
|
22
45217-MA3-006 Plate |
45217-MA3-006 |
from US $4.24 |
||
|
23
|
23
90180-MN8-006 Bolt, flange (8x49) |
90180-MN8-006 |
from US $2.41 |
||
|
24
|
24
90185-MC7-013
Bolt,flg.,10x50
|
90185-MC7-013 |
— | ||
|
25
|
25
90501-MC7-000 Washer, 10.3x25 |
90501-MC7-000 |
US $3.70 |
||
|
26
|
26
91347-PY3-000 O-ring16.8X1.9 |
91347-PY3-000 |
from US $1.67 |
||
|
27
|
27
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
28
|
28
95801-080-550-7 Bolt, flange (8x55) |
95801-080-550-7 |
from US $0.81 |
