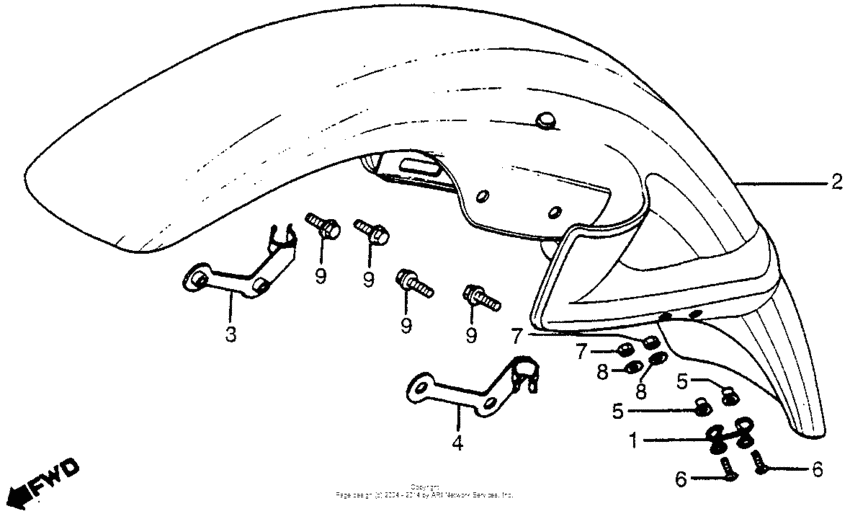

Front fender Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44832-MC7-000
Guide,meter cable
|
44832-MC7-000 |
— | ||
|
2
|
2
61100-MC7-000ZA
Fend,fr*nh-113p-a
|
61100-MC7-000ZA |
— | ||
|
3
|
3
61108-MC7-000
Clamp,r.fr.brk.
|
61108-MC7-000 |
— | ||
|
4
|
4
61109-MC7-000
Clamp,l.fr.brk.
|
61109-MC7-000 |
— | ||
|
5
|
5
80114-MC7-000
Collar, rr. fender
|
80114-MC7-000 |
— | ||
|
6
|
6
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
7
|
7
94001-050-800-S NutHEX., 5MM |
94001-050-800-S |
from US $0.37 |
||
|
8
|
8
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
9
|
9
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
