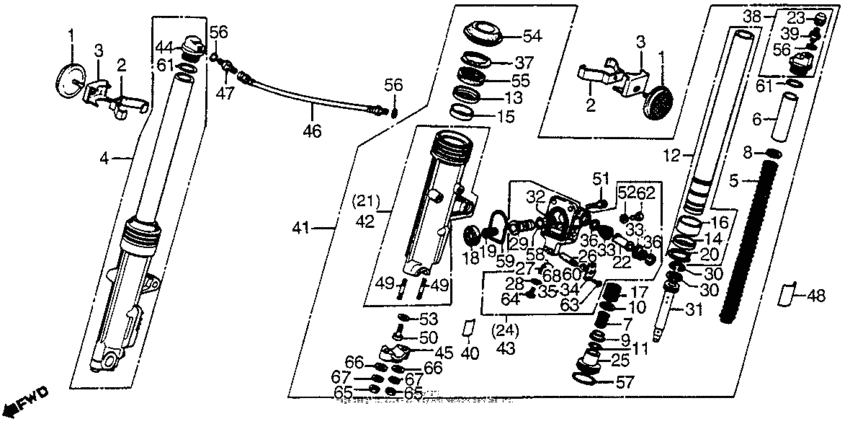

Front shock absorber Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33742-HB9-641 Reflector, fr. |
33742-HB9-641 |
from US $11.20 |
||
|
2
|
2
33751-MC7-670
Stay a, fr.
|
33751-MC7-670 |
— | ||
|
3
|
3
33752-MC7-670
Stay b, fr.
|
33752-MC7-670 |
— | ||
|
4
|
4
51400-MC7-013
Fork assy,r.fr.
Use up to Frame SN 000661 |
51400-MC7-013 |
— | ||
|
4
|
4
51400-MC7-670
S/abs assy., r. fr.
Use from Frame SN 000662 |
51400-MC7-670 |
— | ||
|
5
|
5
51401-MC7-003
Spg.a,fr.cushion
|
51401-MC7-003 |
— | ||
|
6
|
6
51402-MA0-771
Collar,spring
|
51402-MA0-771 |
— | ||
|
7
|
7
51402-MC7-003
Spg.,oil lock
|
51402-MC7-003 |
— | ||
|
8
|
8
51403-MA0-771 Seat, spring |
51403-MA0-771 |
from US $3.55 |
||
|
9
|
9
51403-MC7-003
Valve,oil lock
|
51403-MC7-003 |
— | ||
|
10
|
10
51404-MC7-003
Seat b,spring
|
51404-MC7-003 |
— | ||
|
11
|
11
51405-MC7-003 Ring, stopper |
51405-MC7-003 |
from US $2.24 |
||
|
12
|
12
51410-MC7-003
Pipe,fr.fork
|
51410-MC7-003 |
— | ||
|
13
|
13
51412-461-003 Ring, back-up |
51412-461-003 |
from US $4.28 |
||
|
14
|
14
51413-MC7-003
Ring,oil lock
|
51413-MC7-003 |
— | ||
|
15
|
15
51414-MN4-003 Bush, guide |
51414-MN4-003 |
from US $7.55 |
||
|
16
|
16
51415-461-003 Bush,slider |
51415-461-003 |
from US $12.49 |
||
|
17
|
17
51416-MC7-003
Spring,rebound
|
51416-MC7-003 |
— | ||
|
18
|
18
51417-MC7-003
Packing
|
51417-MC7-003 |
— | ||
|
19
|
19
51418-MC7-013
Spring,piston
|
51418-MC7-013 |
— | ||
|
20
|
20
51419-MC7-003
Ring b, stopper
|
51419-MC7-003 |
— | ||
|
21
|
21
51421-MC7-013
Case, r. (lower)
Use up to Frame SN 001961 |
51421-MC7-013 |
— | ||
|
22
|
22
51423-MC7-003
Collar,piston
|
51423-MC7-003 |
— | ||
|
23
|
23
51425-169-003
Seal,dust
|
51425-169-003 |
— | ||
|
24
|
24
51430-MC7-013
Case,r.piston
|
51430-MC7-013 |
— | ||
|
25
|
25
51432-MC7-003
Piece,oil lock
|
51432-MC7-003 |
— | ||
|
26
|
26
51433-MC7-003
Rod,adjuster
|
51433-MC7-003 |
— | ||
|
27
|
27
51434-MC7-003
Spring, click
|
51434-MC7-003 |
— | ||
|
28
|
28
51435-MC7-003 Washer (5mm) |
51435-MC7-003 |
from US $2.59 |
||
|
29
|
29
51436-MC7-013
Piston
|
51436-MC7-013 |
— | ||
|
30
|
30
51437-MA0-771 Ring,piston |
51437-MA0-771 |
US $7.84 |
||
|
31
|
31
51440-MC7-003
Pipe,seat
|
51440-MC7-003 |
— | ||
|
32
|
32
51441-MC7-003 Rubber, stopper |
51441-MC7-003 |
from US $2.96 |
||
|
33
|
33
51442-MC7-003 Boot, piston case |
51442-MC7-003 |
from US $9.62 |
||
|
34
|
34
51443-MC7-505
Washer r side
Use up to Frame SN 001961 |
51443-MC7-505 |
— | ||
|
34
|
34
51443-MC7-013
Washer,r.side
Use from Frame SN 001962 |
51443-MC7-013 |
— | ||
|
35
|
35
51444-MC7-505
Washer b, side
Use up to Frame SN 001961 |
51444-MC7-505 |
— | ||
|
35
|
35
51444-MC7-013
Washer,l.side
Use from Frame SN 001962 |
51444-MC7-013 |
— | ||
|
36
|
36
51445-MC7-003 Holder, boot |
51445-MC7-003 |
from US $6.79 |
||
|
37
|
37
51447-461-003 Circlip (50mm) |
51447-461-003 |
from US $3.78 |
||
|
38
|
38
51450-MC7-003
Bolt,fr.fork
|
51450-MC7-003 |
— | ||
|
39
|
39
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
40
|
40
51496-MC7-670 Mark, fr. forkUse from Frame SN 000662 |
51496-MC7-670 |
from US $3.78 |
||
|
41
|
41
51500-MC7-670
S/abs assy., l. fr.
Use up to Frame SN 000661 |
51500-MC7-670 |
— | ||
|
42
|
42
51521-MC7-013
Case,l.bottom
Use up to Frame SN 001961 |
51521-MC7-013 |
— | ||
|
43
|
43
51530-MC7-013
Case,l.piston
|
51530-MC7-013 |
— | ||
|
44
|
44
51555-461-003
Bolt,l.fr.fork
|
51555-461-003 |
— | ||
|
45
|
45
51634-MC7-003
Holder,axle
|
51634-MC7-003 |
— | ||
|
46
|
46
53137-MC7-003
Hose,fr.fork join
|
53137-MC7-003 |
— | ||
|
47
|
47
53139-463-000 Connector |
53139-463-000 |
US $26.38 |
||
|
48
|
48
87509-MC7-610
Mark,fr.fork caut
|
87509-MC7-610 |
— | ||
|
49
|
49
90102-MC7-003
Bolt,stud,8x53
|
90102-MC7-003 |
— | ||
|
50
|
50
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
51
|
51
96700-0601817 Bolt, socket (6x18) |
96700-0601817 |
US $0.59 |
||
|
52
|
52
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
53
|
53
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
54
|
54
91254-KAZ-003 Dust seal |
91254-KAZ-003 |
from US $14.21 |
||
|
55
|
55
91255-461-003 Oil seal,37x50x11 |
91255-461-003 |
from US $17.14 |
||
|
56
|
56
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
56
|
56
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
57
|
57
91306-MC7-003 O-ring e,33.5x2 |
91306-MC7-003 |
from US $3.67 |
||
|
58
|
58
91311-PH7-003 O-ring13.8X2.4 (NOK) |
91311-PH7-003 |
from US $1.55 |
||
|
59
|
59
91302-657-000 O-ring53.8X3.1 |
91302-657-000 |
from US $3.99 |
||
|
60
|
60
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $1.78 |
||
|
61
|
61
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
62
|
62
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
63
|
63
93500-040101B Screw, pan (4x10)Use up to Frame SN 001961 |
93500-040101B |
US $0.52 |
||
|
63
|
63
93600-040-101-B Screw,flat,4x10Use from Frame SN 001962 |
93600-040-101-B |
US $0.52 |
||
|
64
|
64
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
65
|
65
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
66
|
66
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
67
|
67
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
68
|
68
9621105000 Ball, steel, #5 (5/32) |
9621105000 |
from US $0.15 |
