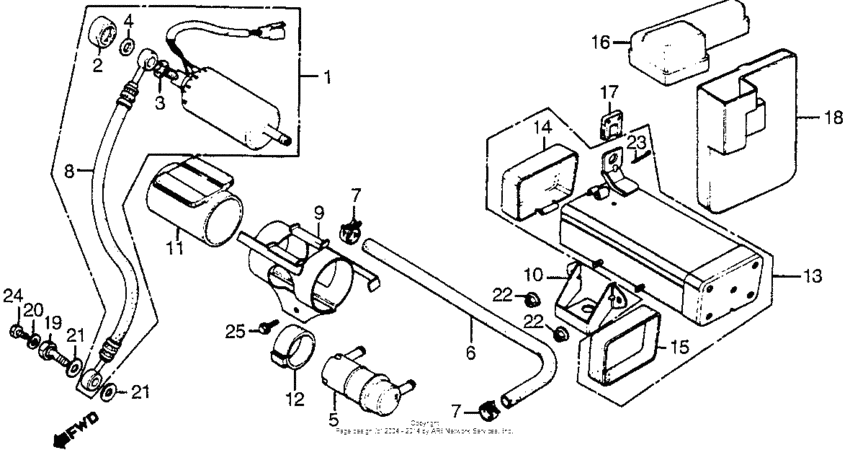

Fuel pump + tool box Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16700-ME7-000
Pump assy.,fuel
|
16700-ME7-000 |
— | ||
|
2
|
2
16701-MC7-003
Nut,pump hexagon
|
16701-MC7-003 |
— | ||
|
3
|
3
16702-MC7-003
Washer, pump
|
16702-MC7-003 |
— | ||
|
4
|
4
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
5
|
5
16910-MC7-003
Filter assy.,fuel
|
16910-MC7-003 |
— | ||
|
6
|
6
16966-MC7-000
Hose b,fuel
|
16966-MC7-000 |
— | ||
|
7
|
7
16968-MC7-000 Clip b, fuel hose |
16968-MC7-000 |
from US $5.25 |
||
|
8
|
8
17965-MC7-003
Hose assy.,fuel
|
17965-MC7-003 |
— | ||
|
9
|
9
50328-MC7-000
Band, fuel pump
|
50328-MC7-000 |
— | ||
|
10
|
10
50329-MC7-000
Stay,fuel pump mt
|
50329-MC7-000 |
— | ||
|
11
|
11
50331-MC7-000
Rub, fuel pump band
|
50331-MC7-000 |
— | ||
|
12
|
12
50333-MC7-000
Rub.filter band
|
50333-MC7-000 |
— | ||
|
13
|
13
89501-MC7-000
Box assy., tool
|
89501-MC7-000 |
— | ||
|
14
|
14
89503-MC7-000
Cap,tool box
|
89503-MC7-000 |
— | ||
|
15
|
15
89504-MC7-000
Rub,tool box band
|
89504-MC7-000 |
— | ||
|
16
|
16
89506-MC7-000
Cap,owners manual
|
89506-MC7-000 |
— | ||
|
17
|
17
89507-MC7-000
Rub,owners manual
|
89507-MC7-000 |
— | ||
|
18
|
18
89508-MC7-000
Case,ownersmanlal
|
89508-MC7-000 |
— | ||
|
19
|
19
90196-MC7-000
Bolt,fuel hose
|
90196-MC7-000 |
— | ||
|
20
|
20
90463-KRM-840 Washer (6.2mm) |
90463-KRM-840 |
from US $1.84 |
||
|
21
|
21
90496-MC7-000
Washer,fuel bolt
|
90496-MC7-000 |
— | ||
|
22
|
22
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
23
|
23
94201-02280
Pin,split,2.0
|
94201-02280 |
— | ||
|
24
|
24
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
25
|
25
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
