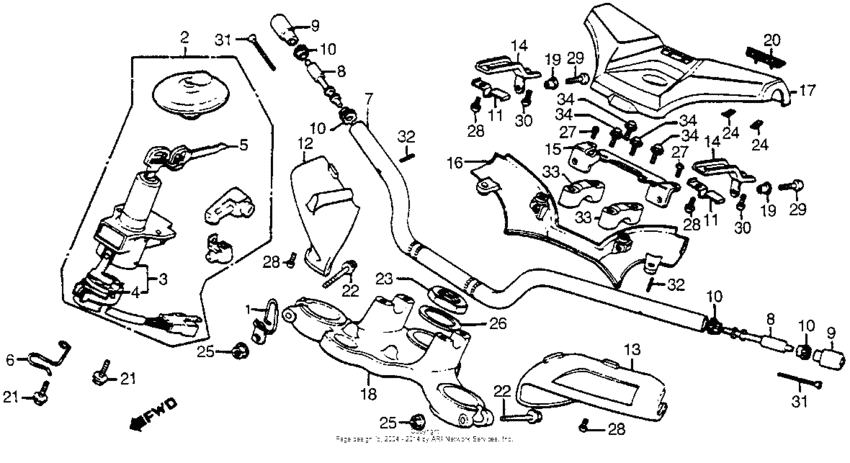

Handlebar + top bridge key set + steering stem + Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22875-MC7-000
Clip,clutch cable
|
22875-MC7-000 |
— | ||
|
2
|
2
35010-MC7-600
Key set
|
35010-MC7-600 |
— | ||
|
3
|
3
35100-MC7-601
Sw,combination
|
35100-MC7-601 |
— | ||
|
4
|
4
35101-MC7-611
Base comp,contact
|
35101-MC7-611 |
— | ||
|
5
|
5
35121-KW3-771 Key, blank (type1) |
35121-KW3-771 |
from US $8.58 |
||
|
5
|
5
35122-KW3-771 Key, blank (type2) |
35122-KW3-771 |
from US $9.01 |
||
|
5
|
5
35122-MG9-810 Key, blank (type2) |
35122-MG9-810 |
US $9.30 |
||
| replacement | |||||
|
5
|
5
35122-KW3-771 Key, blank (type2) |
35122-KW3-771 |
from US $9.01 |
||
|
6
|
6
50733-MC7-000
Guide,throt.cable
|
50733-MC7-000 |
— | ||
|
7
|
7
53100-MC7-000
Pipe,strg.handle
|
53100-MC7-000 |
— | ||
|
8
|
8
53101-MC7-000
Weight b, handlebar
|
53101-MC7-000 |
— | ||
|
9
|
9
53102-MC7-000
Weight a,handle
|
53102-MC7-000 |
— | ||
|
10
|
10
53107-121-730 Rubber |
53107-121-730 |
from US $2.44 |
||
|
11
|
11
53203-MC7-000
Hold.lever cover
|
53203-MC7-000 |
— | ||
|
12
|
12
53204-ME7-000ZA
Cover,r*nh-114m-u
|
53204-ME7-000ZA |
— | ||
|
13
|
13
53206-ME7-000ZA
Cover,l *nh114mu*
|
53206-ME7-000ZA |
— | ||
|
14
|
14
53207-MC7-000
Brkt,hndl.cover
|
53207-MC7-000 |
— | ||
|
15
|
15
53208-MC7-000
Stay,handle cover
|
53208-MC7-000 |
— | ||
|
16
|
16
53209-MC7-000
Cover,lower hndl.
|
53209-MC7-000 |
— | ||
|
17
|
17
53210-ME7-000
Cover, handlebar
|
53210-ME7-000 |
— | ||
|
18
|
18
53230-MC7-000ZA
Bridge,*nh-105*
|
53230-MC7-000ZA |
— | ||
|
19
|
19
53211-MC7-000
Collar
|
53211-MC7-000 |
— | ||
|
20
|
20
87106-MC7-300
Emb,handle cover
|
87106-MC7-300 |
— | ||
|
21
|
21
90105-MC7-000
Bolt,comb.sw.set
|
90105-MC7-000 |
— | ||
|
22
|
22
90155-369-000 Bolt,flange,7x54 |
90155-369-000 |
from US $6.81 |
||
|
23
|
23
90304-MC7-000
Nut, steering stem
|
90304-MC7-000 |
— | ||
|
24
|
24
90315-504-000 NutSPIRE, 3MM |
90315-504-000 |
from US $1.48 |
||
|
25
|
25
90355-369-000 Nut, flange, 7mm |
90355-369-000 |
from US $5.33 |
||
|
26
|
26
90503-283-000 Washer |
90503-283-000 |
from US $4.29 |
||
|
27
|
27
93500-060-080-H ScrewPAN, 6X8 |
93500-060-080-H |
from US $0.44 |
||
|
27
|
27
93500-060080A Screw, pan, 6x8 |
93500-060080A |
from US $0.44 |
||
|
28
|
28
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
29
|
29
93500-060160G Screw, pan (6x16) |
93500-060160G |
from US $0.49 |
||
|
30
|
30
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
31
|
31
93700-060-500-G Screw,oval,6x50 |
93700-060-500-G |
US $0.59 |
||
|
32
|
32
94305-40222 PinSPRING, 4X22 |
94305-40222 |
from US $0.89 |
||
|
33
|
33
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
||
|
34
|
34
95800-080-350-0 Bolt,frang,8x35 |
95800-080-350-0 |
US $0.74 |
||
