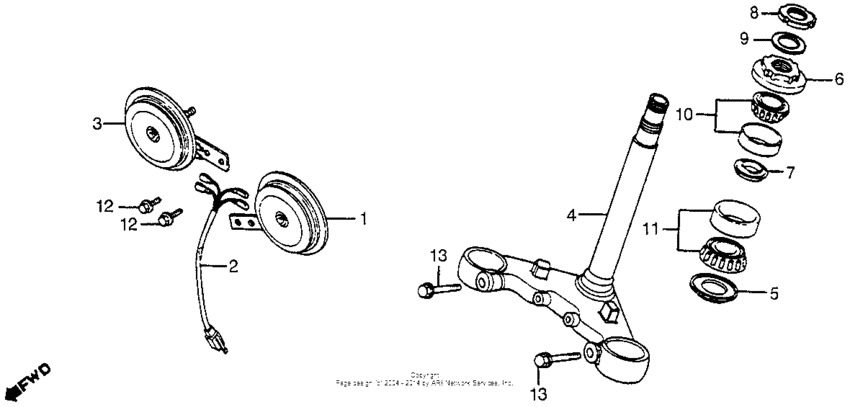

Horn Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38110-GT8-621 Horn comp. (high) (mitsuba) |
38110-GT8-621 |
from US $52.25 |
||
|
2
|
2
38111-MC7-008
Sub cord a,horn
Use up to Frame SN 002811 |
38111-MC7-008 |
— | ||
|
3
|
3
38120-MC7-671 Horn (low) |
38120-MC7-671 |
US $71.10 |
||
|
4
|
4
53200-MC7-000
Stem comp,strg.
|
53200-MC7-000 |
— | ||
|
5
|
5
53214-371-010 Dust seal |
53214-371-010 |
from US $6.50 |
||
|
6
|
6
53220-422-000 Thread |
53220-422-000 |
from US $14.69 |
||
|
7
|
7
53223-371-010
Holder, grease
|
53223-371-010 |
— | ||
|
8
|
8
90302-425-830 Thread |
90302-425-830 |
from US $10.82 |
||
|
9
|
9
90506-425-830 Washer, lock |
90506-425-830 |
from US $4.74 |
||
|
10
|
10
91015-425-832 Bearing, head pipe |
91015-425-832 |
from US $21.62 |
||
|
11
|
11
91016-371-000 Bearing, head pipe |
91016-371-000 |
from US $37.94 |
||
|
12
|
12
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
13
|
13
95701-1003507 Bolt, flange, 10x35 |
95701-1003507 |
from US $0.81 |
