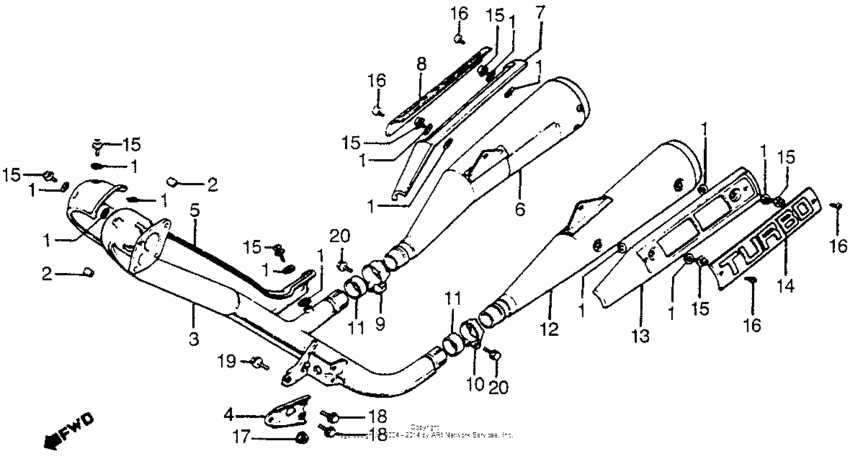

Muffler Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18292-MM9-740 Gasket, protector |
18292-MM9-740 |
from US $4.20 |
||
|
2
|
2
18293-147-000 Rubber |
18293-147-000 |
from US $2.87 |
||
|
3
|
3
18320-MC7-010
Pipe comp exh
|
18320-MC7-010 |
— | ||
|
4
|
4
18322-MC7-000
Stay, ex. pipe
|
18322-MC7-000 |
— | ||
|
5
|
5
18325-MC7-010
Protector, ex. pipe
|
18325-MC7-010 |
— | ||
|
6
|
6
18330-MC7-007
Muffler comp.,r.
|
18330-MC7-007 |
— | ||
|
7
|
7
18335-MC7-000
Protector,r.muff.
|
18335-MC7-000 |
— | ||
|
8
|
8
18336-MC7-305
Emb.,r.muff.protr
|
18336-MC7-305 |
— | ||
|
9
|
9
18375-MG7-000 Band, r. rr. muffler |
18375-MG7-000 |
from US $14.80 |
||
|
10
|
10
18376-MG7-000 Band, l. rr. muffler |
18376-MG7-000 |
from US $14.01 |
||
|
11
|
11
18392-MG7-750 Gasket, rr. muffler |
18392-MG7-750 |
from US $13.32 |
||
|
12
|
12
18430-MC7-007
Muffler comp.,l.
|
18430-MC7-007 |
— | ||
|
13
|
13
18435-MC7-000
Protector,l.muff.
|
18435-MC7-000 |
— | ||
|
14
|
14
18436-MC7-305
Emb..l muff.protr
|
18436-MC7-305 |
— | ||
|
15
|
15
90136-MC7-000 Screw-washer (6x12) |
90136-MC7-000 |
from US $4 |
||
|
16
|
16
93700-040-080-G ScrewOVAL, 4X8 |
93700-040-080-G |
US $0.37 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
19
|
19
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
20
|
20
95701-0804000 Bolt, flange, 8x40 |
95701-0804000 |
from US $0.74 |
