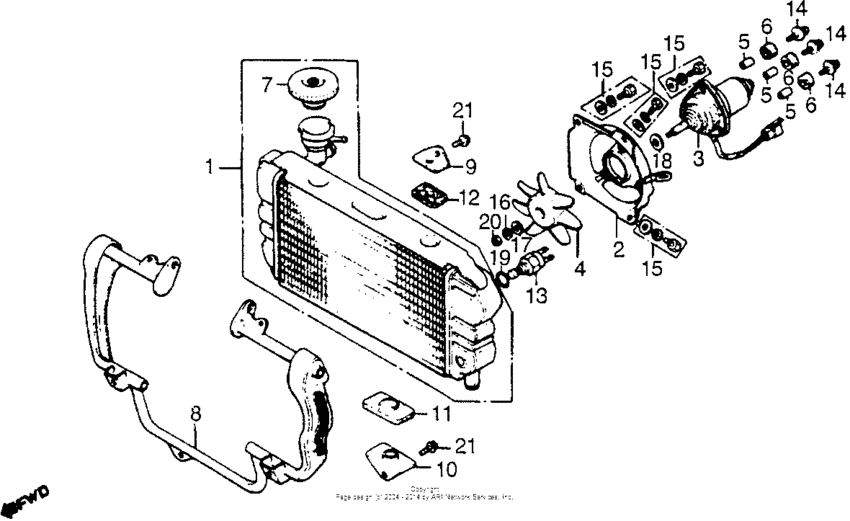

Radiator + cooling fan Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-MC7-003
Radiator comp.
|
19010-MC7-003 |
— | ||
|
2
|
2
19020-MC7-003
Shroud comp.
|
19020-MC7-003 |
— | ||
|
3
|
3
19030-KE8-004
Motor assy.,fan
|
19030-KE8-004 |
— | ||
|
4
|
4
19040-MC7-003
Fan,cooling
|
19040-MC7-003 |
— | ||
|
5
|
5
N9491-940-040
Collar
|
N9491-940-040 |
— | ||
|
6
|
6
19041-611-003 RubberBUSHING |
19041-611-003 |
from US $2.29 |
||
|
7
|
7
19045-MG9-003
Cap comp
|
19045-MG9-003 |
— | ||
|
8
|
8
19112-MC7-000
Guard,radiator
|
19112-MC7-000 |
— | ||
|
9
|
9
19113-MC7-000
Brkt,radiator up.
|
19113-MC7-000 |
— | ||
|
10
|
10
19114-MC7-000
Brkt,radiator lwr
|
19114-MC7-000 |
— | ||
|
11
|
11
19115-MC7-000
Cush,radiator lwr
|
19115-MC7-000 |
— | ||
|
12
|
12
19116-MC7-000
Cush,radiator up.
|
19116-MC7-000 |
— | ||
|
13
|
13
37760-MC7-003
Switch assy., thermo
|
37760-MC7-003 |
— | ||
|
14
|
14
90041-679-003
Screw-washer
|
90041-679-003 |
— | ||
|
15
|
15
90042-463-003
Bolt washer 6x10
|
90042-463-003 |
— | ||
|
16
|
16
90401-679-003 WasherSPRING, 5MM |
90401-679-003 |
US $2.31 |
||
|
17
|
17
94103-05800 WasherPLAIN, 5MM |
94103-05800 |
from US $0.38 |
||
|
18
|
18
90501-671-003 WasherSPECIAL |
90501-671-003 |
US $7.33 |
||
|
19
|
19
91307-PH7-660 O-ring13.5X1.4 |
91307-PH7-660 |
from US $2.44 |
||
|
20
|
20
94001-050-800-S NutHEX., 5MM |
94001-050-800-S |
from US $0.37 |
||
|
21
|
21
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
