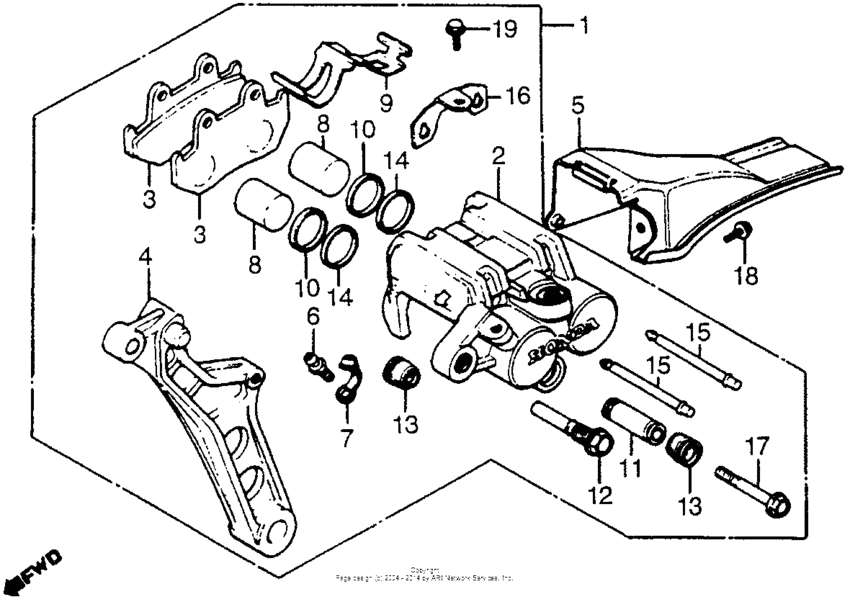

Rear brake caliper Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
431A0-MC7-024 Set brake pad |
431A0-MC7-024 |
US $55.11 |
||
| replacement | |||||
|
NI
|
NI
06435-MC7-405 Pad set |
06435-MC7-405 |
from US $95.05 |
||
|
1
|
1
43100-MC7-016 Caliper assy.,rr. |
43100-MC7-016 |
US $380.21 |
||
|
2
|
2
43101-MB9-006
Caliper comp.,rr.
|
43101-MB9-006 |
— | ||
|
3
|
3
431A0-MC7-024 Set brake pad |
431A0-MC7-024 |
US $55.11 |
||
| replacement | |||||
|
3
|
3
06435-MC7-405 Pad set |
06435-MC7-405 |
from US $95.05 |
||
|
4
|
4
43110-MC7-006
Bracket,rr.brake
|
43110-MC7-006 |
— | ||
|
5
|
5
43140-MB9-000
Cover,rr.disk
|
43140-MB9-000 |
— | ||
|
6
|
6
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
7
|
7
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
8
|
8
45107-MA3-006 Piston |
45107-MA3-006 |
from US $32.64 |
||
|
9
|
9
45108-MA3-006 Spring, pad |
45108-MA3-006 |
from US $7.40 |
||
|
10
|
10
45109-166-006 Dust seal |
45109-166-006 |
from US $4 |
||
|
11
|
11
45111-MA3-006 Sleeve |
45111-MA3-006 |
from US $8.73 |
||
|
12
|
12
45131-MA3-006 Pin, bolt |
45131-MA3-006 |
from US $11.99 |
||
|
13
|
13
45133-166-016 Boot, pin |
45133-166-016 |
from US $3.18 |
||
|
14
|
14
45209-166-006 SealPISTON |
45209-166-006 |
from US $4.07 |
||
|
15
|
15
45215-MA3-006 Pin (4.0mm) |
45215-MA3-006 |
from US $7.40 |
||
|
16
|
16
45217-MA3-006 Plate |
45217-MA3-006 |
from US $4.24 |
||
|
17
|
17
90180-MN8-006 Bolt, flange (8x49) |
90180-MN8-006 |
from US $2.41 |
||
|
18
|
18
93892-050-100-7 Screw-washer5X10 |
93892-050-100-7 |
from US $0.44 |
||
|
19
|
19
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
