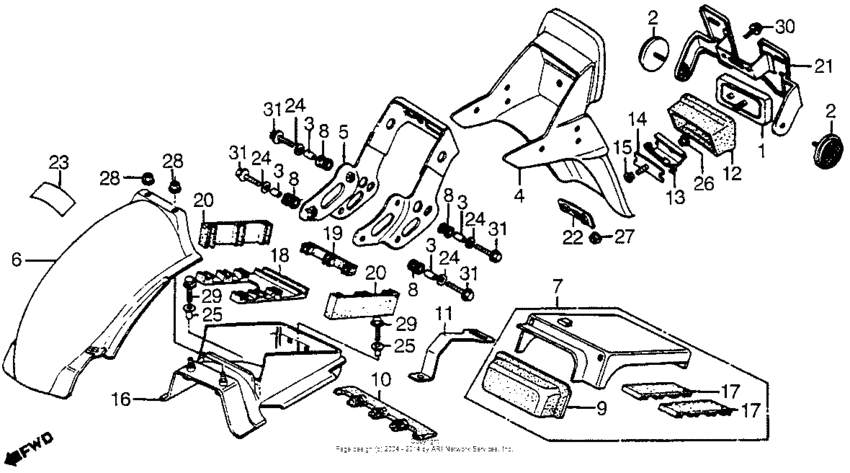

Rear fender Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-MC7-612 Reflector, reflex |
33741-MC7-612 |
from US $16.86 |
||
|
2
|
2
33741-HB9-641 Reflector, rr. |
33741-HB9-641 |
from US $16.43 |
||
|
3
|
3
77112-397-770
Collar,seat lock
|
77112-397-770 |
— | ||
|
4
|
4
80100-MC7-307
Fender a,rr
|
80100-MC7-307 |
— | ||
|
5
|
5
80101-MC7-000
Plate,taillight
|
80101-MC7-000 |
— | ||
|
6
|
6
80105-MC7-010
Fender b, rr.
|
80105-MC7-010 |
— | ||
|
7
|
7
80106-MC7-000
Cove,e.c.u.
|
80106-MC7-000 |
— | ||
|
8
|
8
80106-028-010
Cushion rr fender
|
80106-028-010 |
— | ||
|
9
|
9
80107-MC7-300
Rub.,e.c.u.cover
|
80107-MC7-300 |
— | ||
|
10
|
10
80108-MC7-000
Rubber,fender a
|
80108-MC7-000 |
— | ||
|
11
|
11
80109-MC7-000
Pl,e.c.u cov.set.
|
80109-MC7-000 |
— | ||
|
12
|
12
80111-MC7-000
Base,rr.reflector
|
80111-MC7-000 |
— | ||
|
13
|
13
80112-MC7-000
Brkt,reflector.rr
|
80112-MC7-000 |
— | ||
|
14
|
14
80113-MC7-000
Pl.,rr.reflector
|
80113-MC7-000 |
— | ||
|
15
|
15
80114-MC7-000
Collar, rr. fender
|
80114-MC7-000 |
— | ||
|
16
|
16
80205-MC7-000
Box
|
80205-MC7-000 |
— | ||
|
17
|
17
80207-MC7-000
Rubber d
|
80207-MC7-000 |
— | ||
|
18
|
18
80208-MC7-000
Cush.,a.e.c.u.box
|
80208-MC7-000 |
— | ||
|
19
|
19
80209-MC7-000
Cush.c,elec.box
|
80209-MC7-000 |
— | ||
|
20
|
20
80211-MC7-000
Rubber b
|
80211-MC7-000 |
— | ||
|
21
|
21
84701-MC7-670
Brkt, number plate
|
84701-MC7-670 |
— | ||
|
22
|
22
84702-MA1-000
Pl.,number brkt.
|
84702-MA1-000 |
— | ||
|
23
|
23
87135-MC7-670
Diagram
|
87135-MC7-670 |
— | ||
|
24
|
24
90504-124-000 Washer,chain case |
90504-124-000 |
US $3.33 |
||
|
25
|
25
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $1.57 |
||
|
26
|
26
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
27
|
27
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
28
|
28
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
29
|
29
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
30
|
30
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
31
|
31
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
