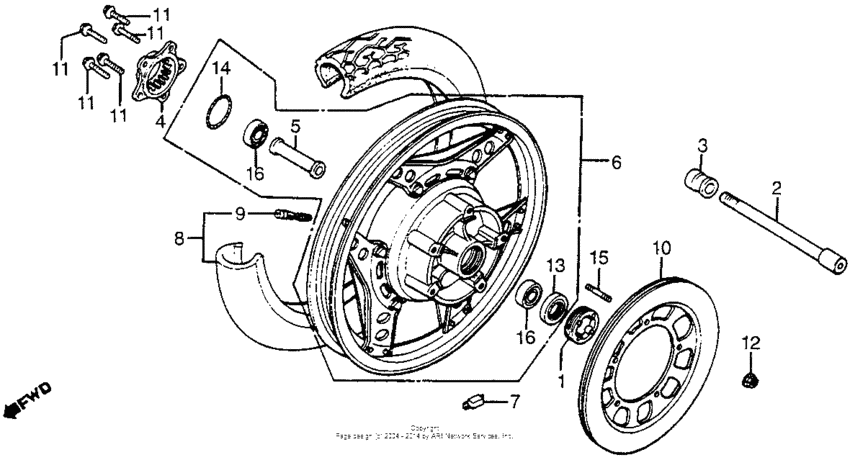

Rear wheel Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41231-430-000
Retainer,bearing
|
41231-430-000 |
— | ||
|
2
|
2
42301-MC7-000
Axle,rr.wheel
|
42301-MC7-000 |
— | ||
|
3
|
3
42311-MC7-000
Collar,brake side
|
42311-MC7-000 |
— | ||
|
4
|
4
42610-415-000
Flange,final,drve
|
42610-415-000 |
— | ||
|
5
|
5
42620-MC7-000
Collar,rr.wheel
|
42620-MC7-000 |
— | ||
|
6
|
6
42650-MC7-305
Wheel comp.,rr.
|
42650-MC7-305 |
— | ||
|
7
|
7
42704-MC7-000 Balance(10g) |
42704-MC7-000 |
US $8.16 |
||
|
7
|
7
42705-MC7-000 Balance(20g) |
42705-MC7-000 |
US $8.16 |
||
|
7
|
7
42706-MC7-000
Balance(30g)
|
42706-MC7-000 |
— | ||
|
8
|
8
42710-ME7-671 Tire (120/90-17h) |
42710-ME7-671 |
US $98.43 |
||
|
8
|
8
42710-MC7-672 Tire (120/90-17) |
42710-MC7-672 |
US $92.24 |
||
|
9
|
9
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
10
|
10
43121-MC5-000
Disk, rr. brake
|
43121-MC5-000 |
— | ||
|
11
|
11
90130-MC7-000 Bolt, ubs, 10x34 |
90130-MC7-000 |
US $4.09 |
||
|
12
|
12
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
13
|
13
91257-230-003 Oil seal (28x42x7) |
91257-230-003 |
from US $8.29 |
||
|
14
|
14
91302-KF0-003 O-RING, 54X2.4 (ARAI) |
91302-KF0-003 |
from US $3.63 |
||
|
15
|
15
92712-06035-0E
Bolt,stud,6x35
|
92712-06035-0E |
— | ||
|
16
|
16
96140-630-301-0 Bearing (6303u) !!!(NA) |
96140-630-301-0 |
from US $9.18 |
