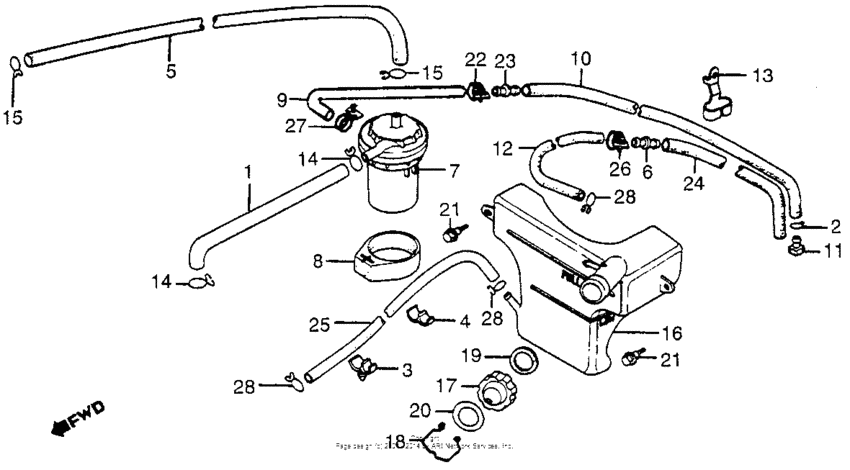

Reserve tank + breather separator Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15761-MC7-000
Tube b,breather
|
15761-MC7-000 |
— | ||
|
2
|
2
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.44 |
||
|
3
|
3
17355-MC7-000
Clip c,brthr.tube
|
17355-MC7-000 |
— | ||
|
4
|
4
17357-MC7-000
Clip A
|
17357-MC7-000 |
— | ||
|
5
|
5
17358-MC7-000
Tube, breather
|
17358-MC7-000 |
— | ||
|
6
|
6
17359-419-670 Joint, breather tube |
17359-419-670 |
from US $2.59 |
||
|
7
|
7
17360-MC7-000
Separator,comp
|
17360-MC7-000 |
— | ||
|
8
|
8
17366-435-000 Band |
17366-435-000 |
from US $5.03 |
||
|
9
|
9
17367-MC7-000
Tube c,drain
|
17367-MC7-000 |
— | ||
|
10
|
10
17369-MC7-000
Tube b,drain
|
17369-MC7-000 |
— | ||
|
11
|
11
17370-382-870 Plug, breather tube |
17370-382-870 |
from US $3.70 |
||
|
12
|
12
17371-MC7-000
Tube a,fuel
|
17371-MC7-000 |
— | ||
|
13
|
13
17375-MC7-000
Guide,drain tube
|
17375-MC7-000 |
— | ||
|
14
|
14
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
15
|
15
18534-634-670 ClipAIR HOSE, 16MM |
18534-634-670 |
from US $1.68 |
||
|
16
|
16
19103-MA1-000
Tank,reserve
|
19103-MA1-000 |
— | ||
|
17
|
17
19104-415-000
Cap,reserve tank
|
19104-415-000 |
— | ||
|
18
|
18
19105-415-000
Wire,cap lock
|
19105-415-000 |
— | ||
|
19
|
19
19106-415-000
Pack,reserve tank
|
19106-415-000 |
— | ||
|
20
|
20
87507-415-670
Label,reservetank
|
87507-415-670 |
— | ||
|
21
|
21
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
22
|
22
91462-393-780
Clip, tube
|
91462-393-780 |
— | ||
|
23
|
23
91463-393-780 Joint, tube |
91463-393-780 |
from US $1.92 |
||
|
24
|
24
95001-750-0860M Bulk hose (7.5x8000) |
95001-750-0860M |
from US $76.16 |
||
|
25
|
25
95001-750-0860M Bulk hose (7.5x8000) |
95001-750-0860M |
from US $76.16 |
||
|
26
|
26
95002-01150 Clip, tube, a15 |
95002-01150 |
US $1.41 |
||
|
27
|
27
9500201160 Clip, tube (a16) |
9500201160 |
from US $1.41 |
||
|
28
|
28
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
