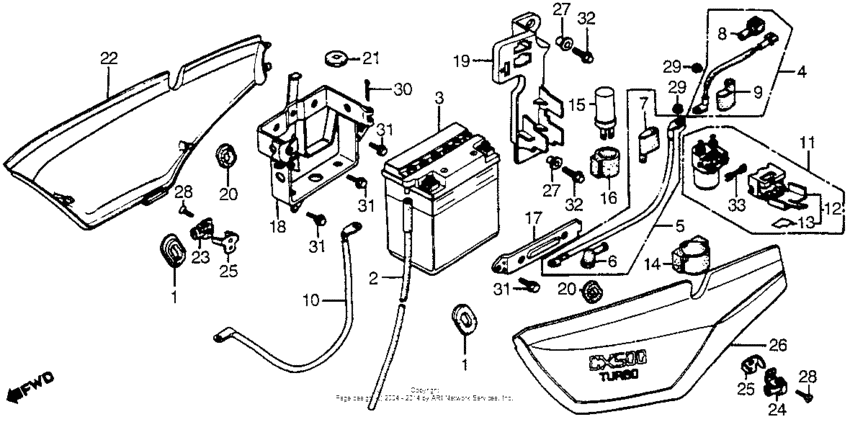

Side cover + battery Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
31500-425-672AH Battery assy |
31500-425-672AH |
US $85.56 |
||
|
3
|
3
31502-MA1-000
Tube,bat.breather
Use up to Frame SN 000911 |
31502-MA1-000 |
— | ||
|
3
|
3
31502-MB1-405
Tube bat,breather
Use from Frame SN 000912 |
31502-MB1-405 |
— | ||
|
4
|
4
32401-MA1-730
Cable,starter bat
|
32401-MA1-730 |
— | ||
|
5
|
5
32410-KK6-000
Cable, starter motor
|
32410-KK6-000 |
— | ||
|
6
|
6
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
7
|
7
32412-426-000
Cover,terminal
|
32412-426-000 |
— | ||
|
8
|
8
32414-MA1-730
Cover,terminal
|
32414-MA1-730 |
— | ||
|
9
|
9
32416-460-000 Cover b, magnetic switch |
32416-460-000 |
US $5.25 |
||
|
10
|
10
32601-MC7-000
Cable,bat.earth
|
32601-MC7-000 |
— | ||
|
11
|
11
35850-MB0-007 Sw assy,start.mag |
35850-MB0-007 |
from US $111.52 |
||
|
12
|
12
35852-425-017
Cover,fuse
|
35852-425-017 |
— | ||
|
13
|
13
35853-425-300
Label,fuse cover
|
35853-425-300 |
— | ||
|
14
|
14
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
15
|
15
38300-MG2-008 Relay,assy winker |
38300-MG2-008 |
US $53.72 |
||
|
16
|
16
38306-292-000 Suspension |
38306-292-000 |
from US $4.07 |
||
|
17
|
17
50330-MC7-000
Band b comp.
|
50330-MC7-000 |
— | ||
|
18
|
18
50332-MC7-000
Box comp.,battery
|
50332-MC7-000 |
— | ||
|
19
|
19
50340-MC7-000
Plate, electric
|
50340-MC7-000 |
— | ||
|
20
|
20
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
21
|
21
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.40 |
||
|
22
|
22
83620-MC7-000ZA
Cover,*nh-113p-a*
|
83620-MC7-000ZA |
— | ||
|
23
|
23
83705-MC7-010
Lock, r. side cover
|
83705-MC7-010 |
— | ||
|
24
|
24
83706-MC7-010
Lock, l. side cover
|
83706-MC7-010 |
— | ||
|
25
|
25
83707-MC7-000
Guaide,side,cover
|
83707-MC7-000 |
— | ||
|
26
|
26
83720-MC7-000ZA
Cover,*nh-113p-a*
|
83720-MC7-000ZA |
— | ||
|
27
|
27
61107-KB5-000 Collar, fr |
61107-KB5-000 |
from US $2.55 |
||
|
28
|
28
93600-060-150-A Screw,flat,6x15 |
93600-060-150-A |
US $0.44 |
||
|
29
|
29
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
30
|
30
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
31
|
31
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
32
|
32
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
33
|
33
9820053000 Fuse f (30a) |
9820053000 |
from US $0.74 |
