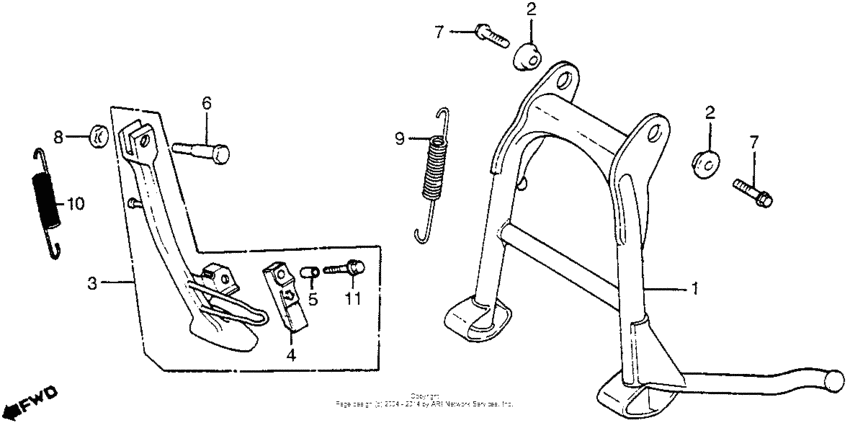

Side stand + main stand Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50500-MC7-000
Stand comp.,main
|
50500-MC7-000 |
— | ||
|
2
|
2
50503-MA1-000 Collar, main stand |
50503-MA1-000 |
from US $8.58 |
||
|
3
|
3
50540-MC7-000
Stand assy.,side
|
50540-MC7-000 |
— | ||
|
4
|
4
50548-356-700 Rubber, stand |
50548-356-700 |
from US $7.15 |
||
|
5
|
5
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
6
|
6
90108-223-000 Bolt |
90108-223-000 |
from US $5.33 |
||
|
7
|
7
95701-100-250-8 BoltFLANGE, 10X25 |
95701-100-250-8 |
from US $0.81 |
||
|
8
|
8
94031-10000 Nut,hex 10mm |
94031-10000 |
from US $0.52 |
||
|
9
|
9
95014-71902 Spring.j, stand |
95014-71902 |
US $3.03 |
||
|
10
|
10
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
11
|
11
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
11
|
11
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
11
|
11
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
