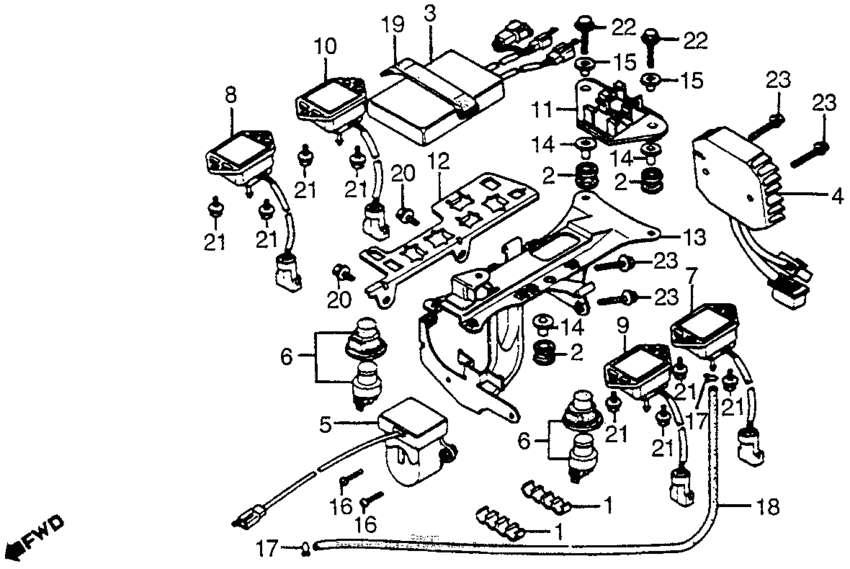

Spark unit + sensor Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16961-MC7-000
Clip,sensor tube
|
16961-MC7-000 |
— | ||
|
2
|
2
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
3
|
3
30400-MC7-005
Spark unit
|
30400-MC7-005 |
— | ||
|
4
|
4
31600-MC7-008
Reg.rect.assy.
|
31600-MC7-008 |
— | ||
|
5
|
5
35160-MC7-003
Kill sensor assy.
|
35160-MC7-003 |
— | ||
|
6
|
6
36130-MC7-003
Relay, main
|
36130-MC7-003 |
— | ||
|
7
|
7
36161-MC7-003
Sensor 1,pressure
|
36161-MC7-003 |
— | ||
|
8
|
8
36171-MC7-003
Sensor 2,pressure
|
36171-MC7-003 |
— | ||
|
9
|
9
36181-MC7-003
Sensor,press.b.
|
36181-MC7-003 |
— | ||
|
10
|
10
36191-MC7-003
Sensor p.ign.
|
36191-MC7-003 |
— | ||
|
11
|
11
50324-MC7-000
Stay,coupler ign.
|
50324-MC7-000 |
— | ||
|
12
|
12
50326-MC7-000
Stay, connector
|
50326-MC7-000 |
— | ||
|
13
|
13
50327-MC7-000
Stay, electric
|
50327-MC7-000 |
— | ||
|
14
|
14
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
14
|
14
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
14
|
14
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
15
|
15
80112-443-850 Collar |
80112-443-850 |
US $2 |
||
|
16
|
16
93500-040-180-A ScrewPAN, 4X18 |
93500-040-180-A |
from US $0.37 |
||
|
17
|
17
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
18
|
18
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
||
|
19
|
19
95012-13001 Band b2, battery |
95012-13001 |
from US $3.03 |
||
|
20
|
20
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
21
|
21
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
22
|
22
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
|
23
|
23
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
