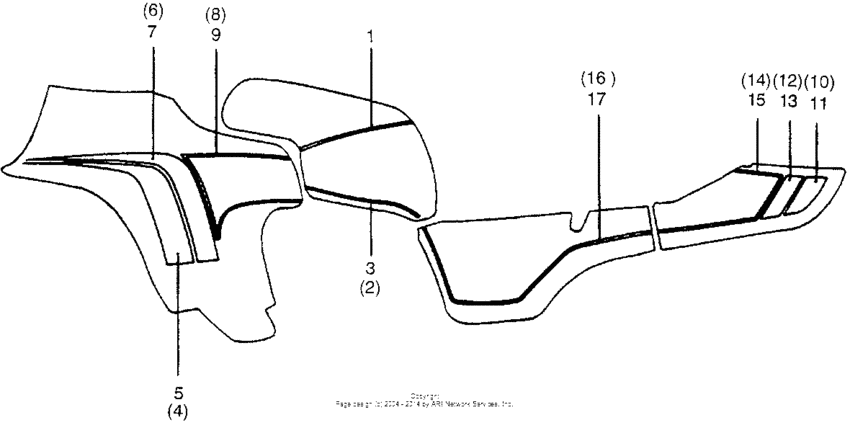

Striping Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17507-MC7-300
Stripe, fuel tank
|
17507-MC7-300 |
— | ||
|
2
|
2
17508-MC7-300
Stripe, r. tank
|
17508-MC7-300 |
— | ||
|
3
|
3
17509-MC7-300
Stripe, l. tank
|
17509-MC7-300 |
— | ||
|
4
|
4
64281-MC7-300
Stripe,r.fairing
|
64281-MC7-300 |
— | ||
|
5
|
5
64282-MC7-300
Stripe,l.fairing
|
64282-MC7-300 |
— | ||
|
6
|
6
64283-MC7-300
Stripe b,fairing
|
64283-MC7-300 |
— | ||
|
7
|
7
64284-MC7-300
Stripe b,fairing
|
64284-MC7-300 |
— | ||
|
8
|
8
64285-MC7-300
Stripe c,fairing
|
64285-MC7-300 |
— | ||
|
9
|
9
64286-MC7-300
Stripe c,fairing
|
64286-MC7-300 |
— | ||
|
10
|
10
83804-MC7-300
Stripe,r.rr.cowl
|
83804-MC7-300 |
— | ||
|
11
|
11
83805-MC7-300
Stripe,l.rr.cowl
|
83805-MC7-300 |
— | ||
|
12
|
12
83806-MC7-300
Stripe b,rr.cowl
|
83806-MC7-300 |
— | ||
|
13
|
13
83807-MC7-300
Stripe b,rr.cowl
|
83807-MC7-300 |
— | ||
|
14
|
14
83808-MC7-300
Stripe c,r.cowl
|
83808-MC7-300 |
— | ||
|
15
|
15
83809-MC7-300
Stripe c,l.cowl
|
83809-MC7-300 |
— | ||
|
16
|
16
87128-MC7-300
Stripe,r.side cov
|
87128-MC7-300 |
— | ||
|
17
|
17
87129-MC7-300
Stripe,l.side cov
|
87129-MC7-300 |
— |
