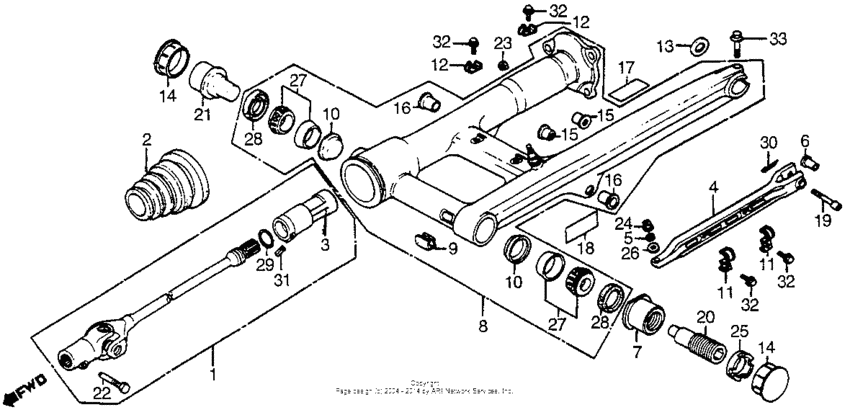

Swingarm Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40200-MC7-000
Shaft comp.,prop.
|
40200-MC7-000 |
— | ||
|
2
|
2
40207-MC7-000
Boot,joint
|
40207-MC7-000 |
— | ||
|
3
|
3
40210-415-010
Joint,shaft
|
40210-415-010 |
— | ||
|
4
|
4
43431-MC7-000
Arm,rr.brk.stop
|
43431-MC7-000 |
— | ||
|
5
|
5
43434-286-000 Rubber |
43434-286-000 |
from US $2.15 |
||
|
6
|
6
43435-MC7-000
Collar,link
|
43435-MC7-000 |
— | ||
|
7
|
7
50197-MA1-300
Nut,fork pivot
|
50197-MA1-300 |
— | ||
|
8
|
8
52110-MC7-000
Fork assy.,rr.
|
52110-MC7-000 |
— | ||
|
9
|
9
52111-MC7-000
Cap, rr.
|
52111-MC7-000 |
— | ||
|
10
|
10
52112-MA1-300 Holder |
52112-MA1-300 |
from US $4.44 |
||
|
11
|
11
52114-MC7-000
Clamper a,brk hos
|
52114-MC7-000 |
— | ||
|
12
|
12
52115-MC7-000
Clamper b,brk hos
|
52115-MC7-000 |
— | ||
|
13
|
13
52116-MC7-000 Wash,plain,1.7mm |
52116-MC7-000 |
US $5.27 |
||
|
14
|
14
52117-MC7-000
Cap,rr.fork pivot
|
52117-MC7-000 |
— | ||
|
15
|
15
52468-MC7-300
Nut,collar
|
52468-MC7-300 |
— | ||
|
16
|
16
52469-MC7-000
Collar,rr.fork
|
52469-MC7-000 |
— | ||
|
17
|
17
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.57 |
||
|
18
|
18
87505-MC7-670
Label, tire caution
|
87505-MC7-670 |
— | ||
|
19
|
19
90120-MC7-000
Bolt,stopper arm
|
90120-MC7-000 |
— | ||
|
20
|
20
90121-MA1-000
Bolt,pivot
|
90121-MA1-000 |
— | ||
|
21
|
21
90121-MC7-000
Bolt,r.fork pivot
|
90121-MC7-000 |
— | ||
|
22
|
22
90127-415-000
Bolt,special,8mm
|
90127-415-000 |
— | ||
|
23
|
23
90308-357-000 Nut, hex. (10mm) |
90308-357-000 |
from US $4.59 |
||
|
24
|
24
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
25
|
25
90355-469-000 Nut, rr. |
90355-469-000 |
from US $10.66 |
||
|
26
|
26
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
27
|
27
91066-MC7-004 R/brg.tap n/com. |
91066-MC7-004 |
US $61.20 |
||
|
28
|
28
91268-463-003 Dust seal (26x40x5) |
91268-463-003 |
from US $7.25 |
||
|
29
|
29
91359-415-300
O-ring,22x1.7
|
91359-415-300 |
— | ||
|
30
|
30
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
31
|
31
94305-40222 PinSPRING, 4X22 |
94305-40222 |
from US $0.89 |
||
|
32
|
32
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
33
|
33
95701-0803200 Bolt, flange, 8x32 |
95701-0803200 |
from US $0.74 |
