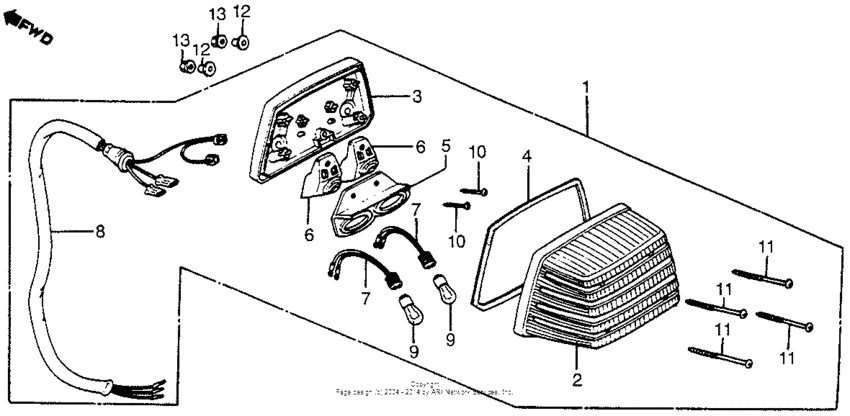

Taillight Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33701-MC7-671
Taillight unit
|
33701-MC7-671 |
— | ||
|
2
|
2
33702-MC7-671
Lens,taillight
|
33702-MC7-671 |
— | ||
|
3
|
3
33703-MC7-611
Base,tail light
|
33703-MC7-611 |
— | ||
|
4
|
4
33704-MC7-671
Packing,tail lens
|
33704-MC7-671 |
— | ||
|
5
|
5
33705-MC7-671
Stay
|
33705-MC7-671 |
— | ||
|
6
|
6
33706-MC7-611
Socket comp.
|
33706-MC7-611 |
— | ||
|
7
|
7
33705-147-671
Cord,tall light
|
33705-147-671 |
— | ||
| replacement | |||||
|
7
|
7
33705-166-770 Cord,taillight |
33705-166-770 |
US $10.21 |
||
|
8
|
8
33708-MC7-611 Cable, sub |
33708-MC7-611 |
US $21.84 |
||
|
9
|
9
34906-425-771 Bulb (12v27/8w) |
34906-425-771 |
from US $4.14 |
||
|
10
|
10
90105-ME5-671 Screw, tap (4x14) |
90105-ME5-671 |
US $2.37 |
||
|
11
|
11
90105-GAM-000 Screw, tap (4x40) |
90105-GAM-000 |
from US $2.44 |
||
|
12
|
12
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $1.57 |
||
|
13
|
13
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
