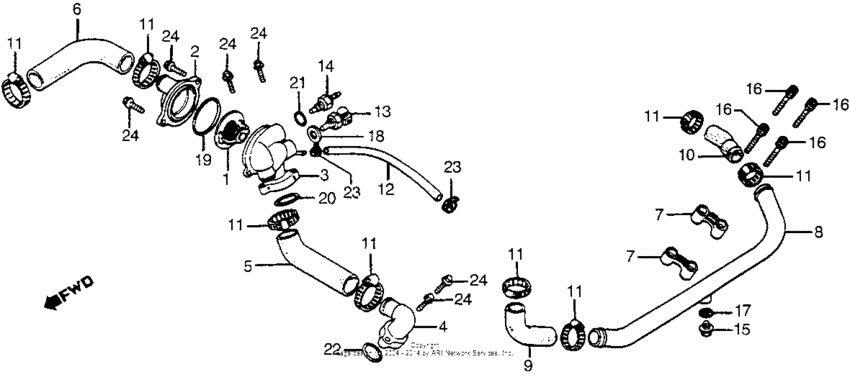

Thermostat + water pipe Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19320-679-F00
Set,thermostat
|
19320-679-F00 |
— | ||
|
2
|
2
19315-MC7-000
Cover,thermostat
|
19315-MC7-000 |
— | ||
|
3
|
3
19411-MC7-000
Case,thermostat
|
19411-MC7-000 |
— | ||
|
4
|
4
19421-MC7-000
Joint,water
|
19421-MC7-000 |
— | ||
|
5
|
5
19501-MC7-000
Hose a,water
|
19501-MC7-000 |
— | ||
|
6
|
6
19502-MC7-000
Hose b,water
|
19502-MC7-000 |
— | ||
|
7
|
7
19503-MC7-000
Clamp,water pipe
|
19503-MC7-000 |
— | ||
|
8
|
8
19504-MC7-000
Pipe,rr.water
|
19504-MC7-000 |
— | ||
|
9
|
9
19506-MC7-000
Hose c,water
|
19506-MC7-000 |
— | ||
|
10
|
10
19507-MC7-000
Hose d,water
|
19507-MC7-000 |
— | ||
|
11
|
11
19514-MC7-000
Band,water hose
|
19514-MC7-000 |
— | ||
|
12
|
12
19521-MC7-000
Tube,5x290
|
19521-MC7-000 |
— | ||
|
13
|
13
36151-MC7-003 Sensor, coolant temp |
36151-MC7-003 |
from US $54.84 |
||
|
14
|
14
37750-611-154 Sending unitWATER TEMPERATURE (DENSO) |
37750-611-154 |
US $51.71 |
||
|
15
|
15
90017-MC7-000
Bolt,sealing,12mm
|
90017-MC7-000 |
— | ||
|
16
|
16
90089-415-000
Bolt,special,5x22
|
90089-415-000 |
— | ||
|
17
|
17
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
17
|
17
90407-259-000 Gasket (12.5x20) |
90407-259-000 |
from US $1.41 |
||
|
18
|
18
90454-MC7-000 Washer (12mm) |
90454-MC7-000 |
from US $2.22 |
||
|
19
|
19
91302-657-000 O-ring53.8X3.1 |
91302-657-000 |
from US $3.99 |
||
|
20
|
20
91303-MC7-003
O-ring,themo.body
|
91303-MC7-003 |
— | ||
|
21
|
21
91307-PH7-660 O-ring13.5X1.4 |
91307-PH7-660 |
from US $2.44 |
||
|
22
|
22
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
||
|
23
|
23
95002-410-500-8 ClampTUBE(D10.5) |
95002-410-500-8 |
from US $0.74 |
||
|
24
|
24
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
