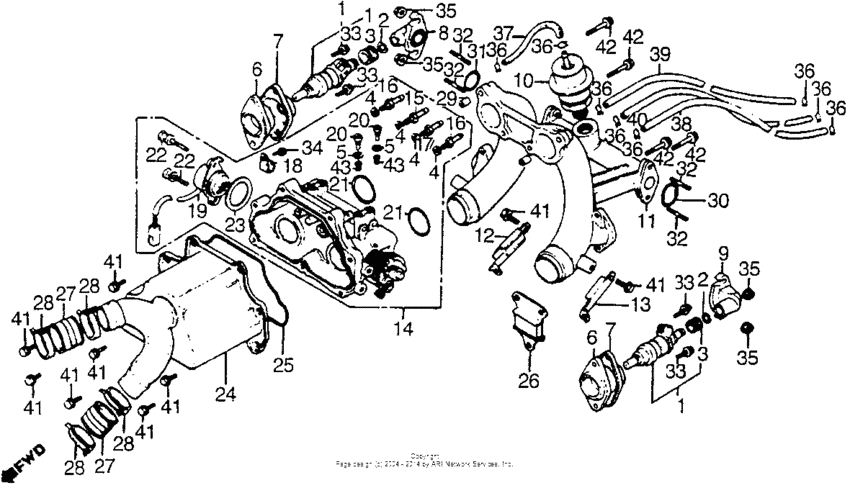

Throttle body + intake manifold Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16110-MC7-003
Injector,fuel
|
16110-MC7-003 |
— | ||
|
2
|
2
16111-MC7-004
O-ring,injector
|
16111-MC7-004 |
— | ||
|
3
|
3
16112-MC7-003
Grommet,injector
|
16112-MC7-003 |
— | ||
|
4
|
4
16170-300-004
Washer,plain
|
16170-300-004 |
— | ||
|
5
|
5
16189-056-004
O ring 4.47x1.78
|
16189-056-004 |
— | ||
|
6
|
6
16220-MC7-003
Flange,holder
|
16220-MC7-003 |
— | ||
|
7
|
7
16221-MC7-000
Cover,holder
|
16221-MC7-000 |
— | ||
|
8
|
8
16312-MC7-000
Cap,r.injector
|
16312-MC7-000 |
— | ||
|
9
|
9
16313-MC7-000
Cap,l.injector
|
16313-MC7-000 |
— | ||
|
10
|
10
16850-MC7-003
Reg,fuel pressure
|
16850-MC7-003 |
— | ||
|
11
|
11
17110-MC7-000
Manifold, in.
|
17110-MC7-000 |
— | ||
|
12
|
12
17123-MC7-000
Mount,r.in.set.
|
17123-MC7-000 |
— | ||
|
13
|
13
17124-MC7-000
Mount,l.in.set.
|
17124-MC7-000 |
— | ||
|
14
|
14
17130-MC7-671
Body, throttle
|
17130-MC7-671 |
— | ||
|
15
|
15
17131-MC7-003
Joint, pign sensor
|
17131-MC7-003 |
— | ||
|
16
|
16
17132-MC7-003
Joint,pb sensor
|
17132-MC7-003 |
— | ||
|
17
|
17
17133-MC7-003
Joint,p2 sensor
|
17133-MC7-003 |
— | ||
|
18
|
18
17134-MC7-003
Clip
|
17134-MC7-003 |
— | ||
|
19
|
19
17135-MC7-671
Sensor, throttle
|
17135-MC7-671 |
— | ||
|
20
|
20
17145-MC7-003
Screw,plug
|
17145-MC7-003 |
— | ||
|
21
|
21
17146-MC7-003
O-ring,38.8x2.4
|
17146-MC7-003 |
— | ||
|
22
|
22
17147-MC7-003 Bolt (6x16) |
17147-MC7-003 |
US $9.98 |
||
|
23
|
23
17149-PH3-005
Pkg, sensor
|
17149-PH3-005 |
— | ||
|
24
|
24
17150-MC7-000
Pre chamber
|
17150-MC7-000 |
— | ||
|
25
|
25
17152-MC7-003
O-ring,chamber
|
17152-MC7-003 |
— | ||
|
26
|
26
17161-MC7-000
Rub,chamber mount
|
17161-MC7-000 |
— | ||
|
27
|
27
17171-MC7-003
Conn.tube,resonat
|
17171-MC7-003 |
— | ||
|
28
|
28
17172-MC7-003
Band, resonator tube
|
17172-MC7-003 |
— | ||
|
29
|
29
91103-429-000 Dowel pin8X10 |
91103-429-000 |
from US $2.74 |
||
|
30
|
30
91256-MC7-003
O-ring,special
|
91256-MC7-003 |
— | ||
|
31
|
31
91256-166-003 O-ring (16.8x2.4) |
91256-166-003 |
from US $2.74 |
||
|
32
|
32
92900-06016-0B BoltSTUD, 6X16 |
92900-06016-0B |
from US $0.59 |
||
|
33
|
33
93500-050180A Screw, pan, 5x18 |
93500-050180A |
from US $0.38 |
||
|
34
|
34
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
35
|
35
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
36
|
36
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
37
|
37
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
||
|
38
|
38
95005-350-0810M Bulk hose (3.5x8000) |
95005-350-0810M |
from US $61.20 |
||
|
39
|
39
95005-350-0810M Bulk hose (3.5x8000) |
95005-350-0810M |
from US $61.20 |
||
|
40
|
40
95005-350-0810M Bulk hose (3.5x8000) |
95005-350-0810M |
from US $61.20 |
||
|
41
|
41
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
42
|
42
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
43
|
43
99101-KFV-0700 Jet,main #70 |
99101-KFV-0700 |
US $5.33 |
