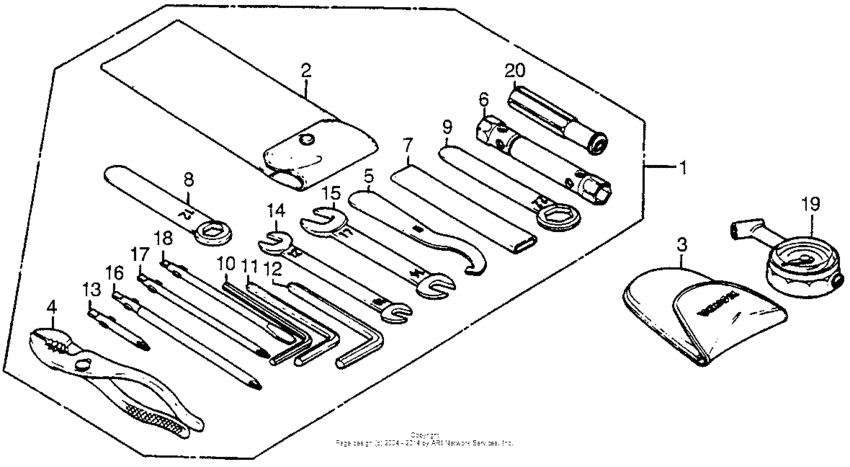

Tools Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89010-MC7-000
Set,tool
|
89010-MC7-000 |
— | ||
|
2
|
2
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
|
3
|
3
89102-469-003 Bag, air pres ga |
89102-469-003 |
from US $8.73 |
||
|
4
|
4
89210-422-000
Pliers (150)
|
89210-422-000 |
— | ||
|
5
|
5
89215-422-000
Spanner,pin
|
89215-422-000 |
— | ||
|
6
|
6
89216-MC7-000
Wrench,18.5x17
|
89216-MC7-000 |
— | ||
|
6
|
6
89216-415-000 Wrench (18.5x17) |
89216-415-000 |
US $17.43 |
||
|
7
|
7
89217-422-000
Handle (120mm)
|
89217-422-000 |
— | ||
|
8
|
8
89218-MC7-000
Wrench,eye,12
|
89218-MC7-000 |
— | ||
|
9
|
9
89218-422-000
Wrench,eye,22mm
|
89218-422-000 |
— | ||
|
10
|
10
89221-422-000 Wrench, hex. (6mm) |
89221-422-000 |
US $33.80 |
||
|
11
|
11
89222-422-000
Wrench, hex. (8mm)
|
89222-422-000 |
— | ||
|
12
|
12
89223-MC7-000
Wrench, hex. (10mm)
|
89223-MC7-000 |
— | ||
|
13
|
13
89224-MC7-000 Driv.4,screw |
89224-MC7-000 |
US $3.11 |
||
|
14
|
14
89225-422-000
Spanner (10x12)
|
89225-422-000 |
— | ||
|
15
|
15
89226-422-000
Spanner,14x17
|
89226-422-000 |
— | ||
|
16
|
16
89227-MC7-000 Screwdriver 1 |
89227-MC7-000 |
US $10.33 |
||
|
17
|
17
89228-422-000
Screwdriver 3
|
89228-422-000 |
— | ||
|
18
|
18
89229-422-000 Screwdriver 2 |
89229-422-000 |
from US $7.24 |
||
|
19
|
19
89301-MN5-003 Gauge, air pressure |
89301-MN5-003 |
from US $35.33 |
||
|
20
|
20
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
