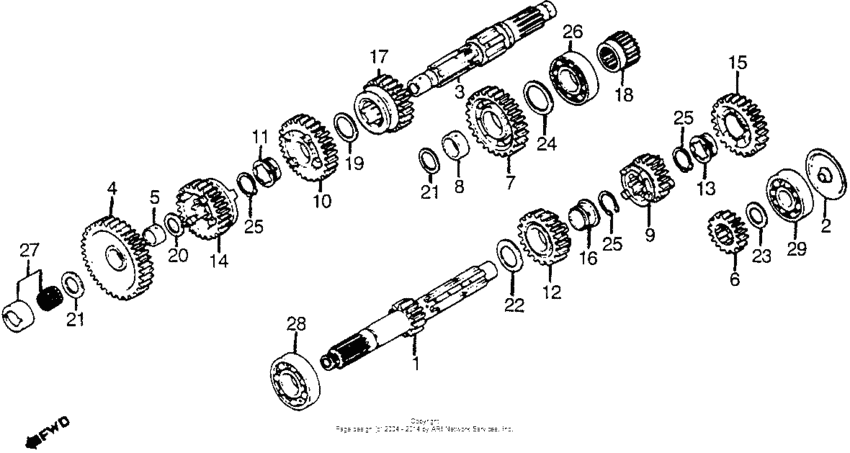

Transmission Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-ME2-000
M/shaft,transmiss
|
23211-ME2-000 |
— | ||
|
2
|
2
23219-415-000
Plate,oil guide
|
23219-415-000 |
— | ||
|
3
|
3
23220-ME2-000
Countershaft, trans
|
23220-ME2-000 |
— | ||
|
4
|
4
23421-ME2-000
Gear ct/shaft
|
23421-ME2-000 |
— | ||
|
5
|
5
23422-MC7-000
Bush,20x24x11
|
23422-MC7-000 |
— | ||
|
6
|
6
23431-MC7-000
Gear,m0shaft(21t)
|
23431-MC7-000 |
— | ||
|
7
|
7
23441-MC7-000
Gear,c-2
|
23441-MC7-000 |
— | ||
|
8
|
8
23442-MC7-000
Bush,27.5x31x11.5
|
23442-MC7-000 |
— | ||
|
9
|
9
23451-MC7-000
Gear,m0shaft 3rd
|
23451-MC7-000 |
— | ||
|
10
|
10
23461-MC7-000
Gear,ctoshaft 3rd
|
23461-MC7-000 |
— | ||
|
11
|
11
23462-MC7-000
Bush,25x29x11.5
|
23462-MC7-000 |
— | ||
|
12
|
12
23471-MC7-000
Gear,moshaft 4th
|
23471-MC7-000 |
— | ||
|
13
|
13
23472-MC7-000
Bush,25x29x15
|
23472-MC7-000 |
— | ||
|
14
|
14
23481-MC7-000 Gear,ct0shaft 4th |
23481-MC7-000 |
US $199.95 |
||
|
15
|
15
23491-MC7-670
Gear,moshaft 5th
|
23491-MC7-670 |
— | ||
|
16
|
16
23492-MC7-000
Bush,spline
|
23492-MC7-000 |
— | ||
|
17
|
17
23501-MC7-000
Gear,ct0shaft 5th
|
23501-MC7-000 |
— | ||
|
18
|
18
23522-415-000
Collar,coun shaft
|
23522-415-000 |
— | ||
|
19
|
19
90446-430-000 Washer,25.2x34 |
90446-430-000 |
US $3.83 |
||
|
20
|
20
90454-428-000 Washer, thrust, 20mm |
90454-428-000 |
from US $2.89 |
||
|
21
|
21
90455-MC7-000
Wash,thrust,27.5
|
90455-MC7-000 |
— | ||
|
22
|
22
90459-357-000 Washer c, thrust, 25mm |
90459-357-000 |
from US $2.63 |
||
|
23
|
23
90461-MC7-000 Washer a (20mm) |
90461-MC7-000 |
US $7.19 |
||
|
23
|
23
90462-MC7-000
Wash,thrust,20mm
|
90462-MC7-000 |
— | ||
|
23
|
23
90463-MC7-000
Wash,thrust,20mm
|
90463-MC7-000 |
— | ||
|
23
|
23
90464-MC7-000
Wash,thrust,20mm
|
90464-MC7-000 |
— | ||
|
23
|
23
90465-MC7-000
Wash,thrust,20mm
|
90465-MC7-000 |
— | ||
|
24
|
24
90466-MC7-000
Wash,thrust,25mm
|
90466-MC7-000 |
— | ||
|
24
|
24
90467-MC7-000
Wash,thrust,25mm
|
90467-MC7-000 |
— | ||
|
24
|
24
90468-MC7-000
Wash,thrust,25mm
|
90468-MC7-000 |
— | ||
|
24
|
24
90469-MC7-000
Wash,thrust,25mm
|
90469-MC7-000 |
— | ||
|
24
|
24
90471-MC7-000
Wash,thrust,25mm
|
90471-MC7-000 |
— | ||
|
25
|
25
90601-300-000 Circlip (25mm) |
90601-300-000 |
from US $4.29 |
||
|
26
|
26
91021-KV3-771 Bearing, radial ball |
91021-KV3-771 |
US $11.84 |
||
|
27
|
27
91022-415-008 Bearing (20mm) |
91022-415-008 |
from US $18.71 |
||
|
28
|
28
96100-630-510-0 B/brg rad n/com |
96100-630-510-0 |
US $10.51 |
||
|
29
|
29
96140-620-400-0 BearingRADIAL BALL, 6204U |
96140-620-400-0 |
from US $8.58 |
