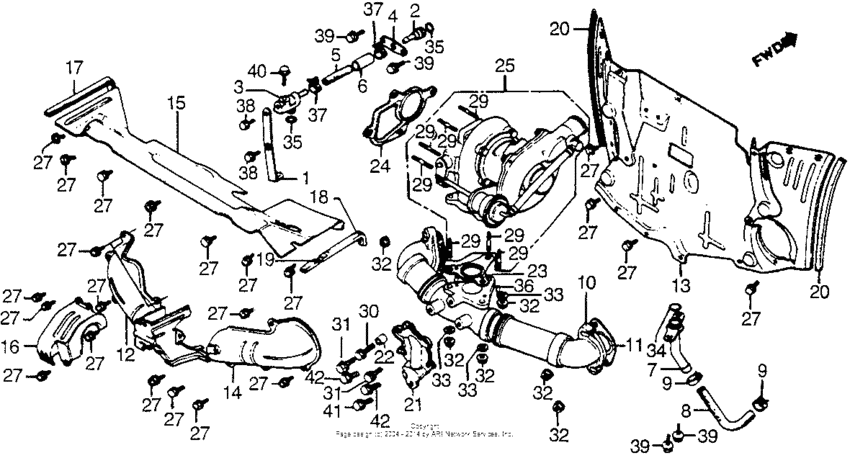

Turbo pump Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15529-MC7-000
Plate
|
15529-MC7-000 |
— | ||
|
2
|
2
15531-MC7-000
Holder,a.t/c.oil
|
15531-MC7-000 |
— | ||
|
3
|
3
15533-MC7-000
Holderb,t/c.hose
|
15533-MC7-000 |
— | ||
|
4
|
4
15534-MC7-000
Plate,set
|
15534-MC7-000 |
— | ||
|
5
|
5
15538-MC7-000
Hose,t/c.oil
|
15538-MC7-000 |
— | ||
|
6
|
6
15539-MC7-000
Protector,t/c.oil
|
15539-MC7-000 |
— | ||
|
7
|
7
15570-MC7-000
Joint,oil return
|
15570-MC7-000 |
— | ||
|
8
|
8
15573-MC7-000
Hose,oil return
|
15573-MC7-000 |
— | ||
|
9
|
9
15576-MC7-000
Clamp,oilrtn.tube
|
15576-MC7-000 |
— | ||
|
10
|
10
18100-MC7-000
Manifold.exh.
|
18100-MC7-000 |
— | ||
|
11
|
11
18139-ME7-000
Gasket,ex.manifol
|
18139-ME7-000 |
— | ||
|
12
|
12
18141-MC7-000 Cover,ex.manifold |
18141-MC7-000 |
US $85.90 |
||
|
13
|
13
18142-MC7-505
Cover, rr
|
18142-MC7-505 |
— | ||
|
14
|
14
18143-MC7-000
Cover,l.ex.mani.
|
18143-MC7-000 |
— | ||
|
15
|
15
18144-ME7-000
Cover,eng.up.
|
18144-ME7-000 |
— | ||
|
16
|
16
18145-ME7-000
Cov turbocharger
|
18145-ME7-000 |
— | ||
|
17
|
17
18146-MC7-300
Rub.a,ex.mnfld.
|
18146-MC7-300 |
— | ||
|
18
|
18
18147-MC7-300
Rub.b,ex.mnfld.
|
18147-MC7-300 |
— | ||
|
19
|
19
18148-MC7-300
Rub.c,ex.mnfld.
|
18148-MC7-300 |
— | ||
|
20
|
20
18149-MC7-300
Rub.d,ex.mnfld.
|
18149-MC7-300 |
— | ||
|
21
|
21
18151-MC7-000 Plate,setting |
18151-MC7-000 |
US $34.07 |
||
|
22
|
22
18155-MC7-000
Coller,pl.set.
|
18155-MC7-000 |
— | ||
|
23
|
23
18191-ME7-000
Gasket,turbocharg
|
18191-ME7-000 |
— | ||
|
24
|
24
18192-MC7-000
Gasket,exh.joint
|
18192-MC7-000 |
— | ||
|
25
|
25
18200-MC7-305
Pump assy.,turbo
|
18200-MC7-305 |
— | ||
|
27
|
27
90002-MC7-000 Bolt, flange, 5x8 |
90002-MC7-000 |
from US $2 |
||
|
29
|
29
90061-MC7-300
Bolt,stud.,8x32
|
90061-MC7-300 |
— | ||
|
30
|
30
90063-MC7-003
Bolt,special,8x26
|
90063-MC7-003 |
— | ||
|
31
|
31
90064-MC7-003
Bolt,special,8x15
|
90064-MC7-003 |
— | ||
|
32
|
32
90217-657-000 Nut, SPECIAL, 8MM |
90217-657-000 |
from US $1.68 |
||
|
33
|
33
90406-MC7-003
Washer,spring,8mm
|
90406-MC7-003 |
— | ||
|
34
|
34
91301-MC7-003 O-ring (15.8x2.5) |
91301-MC7-003 |
from US $4.28 |
||
|
35
|
35
91304-MC7-003 O-ring b (6.8x2.5) |
91304-MC7-003 |
from US $4.14 |
||
|
36
|
36
94303-04065 Pin cDOWEL, 4X6.5 |
94303-04065 |
from US $0.81 |
||
|
37
|
37
95002-408-000-8 ClampTUBE (D8) |
95002-408-000-8 |
from US $0.74 |
||
|
38
|
38
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
39
|
39
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
40
|
40
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
|
41
|
41
95701-0801800 Bolt, flange, 8x18 |
95701-0801800 |
from US $0.59 |
||
|
42
|
42
95701-080-450-0 BoltFLANGE, 8X45 |
95701-080-450-0 |
from US $0.81 |
