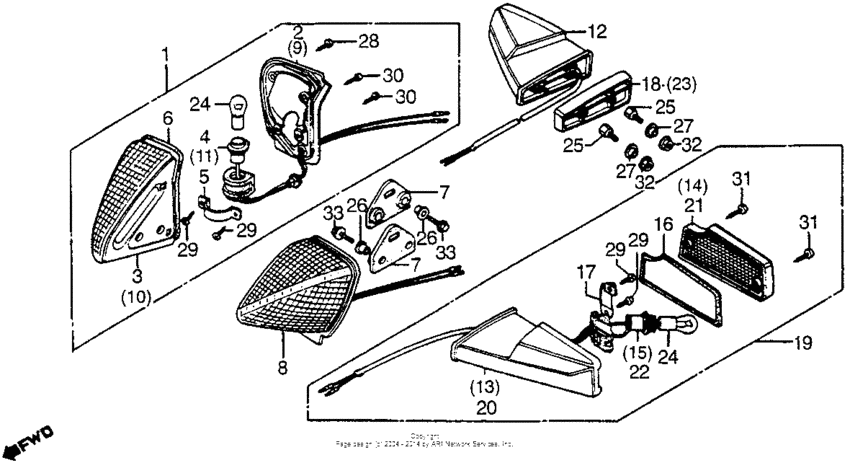

Turn signal Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-MC7-671
Winker assy,r.fr.
|
33400-MC7-671 |
— | ||
|
2
|
2
33401-MC7-611
Base comp.,r.
|
33401-MC7-611 |
— | ||
|
3
|
3
33402-MC7-671
Lens comp.,r.
|
33402-MC7-671 |
— | ||
|
4
|
4
33403-MC7-611
Cord comp.,r.
|
33403-MC7-611 |
— | ||
|
5
|
5
33404-MC7-611
Holder,socket
|
33404-MC7-611 |
— | ||
|
6
|
6
33405-MC7-611
Packing,winker
|
33405-MC7-611 |
— | ||
|
7
|
7
33445-MC7-000
Rub.,winker mtg.
|
33445-MC7-000 |
— | ||
|
8
|
8
33450-MC7-671
Winker assy,l.fr.
|
33450-MC7-671 |
— | ||
|
9
|
9
33451-MC7-611
Base comp.,l.
|
33451-MC7-611 |
— | ||
|
10
|
10
33452-MC7-671
Lens comp.,l
|
33452-MC7-671 |
— | ||
|
11
|
11
33453-MC7-611
Cable, l
|
33453-MC7-611 |
— | ||
|
12
|
12
33600-MC7-671
Winker assy,r.rr.
|
33600-MC7-671 |
— | ||
|
13
|
13
33601-MC7-611
Base,r.winker
|
33601-MC7-611 |
— | ||
|
14
|
14
33602-MC7-671
Lens, r. turn signal
|
33602-MC7-671 |
— | ||
|
15
|
15
33603-MC7-671
Socket, r.
|
33603-MC7-671 |
— | ||
|
16
|
16
33604-MC7-611
Packing,winker
|
33604-MC7-611 |
— | ||
|
17
|
17
33605-MC7-601
Holder,socket
|
33605-MC7-601 |
— | ||
|
18
|
18
33611-MC7-670
Spacer,r.winker
|
33611-MC7-670 |
— | ||
|
19
|
19
33650-MC7-671
Winker assy,l.rr.
|
33650-MC7-671 |
— | ||
|
20
|
20
33651-MC7-611
Base,l.winker
|
33651-MC7-611 |
— | ||
|
21
|
21
33652-MC7-671
Lens, l. turn signal
|
33652-MC7-671 |
— | ||
|
22
|
22
33653-MC7-671
Socket, l.
|
33653-MC7-671 |
— | ||
|
23
|
23
33661-MC7-670
Spacer,l.winker
|
33661-MC7-670 |
— | ||
|
24
|
24
34905-268-671 Bulb (12v23w32cp) |
34905-268-671 |
from US $3.26 |
||
|
25
|
25
90122-MC7-670
Bolt,rr.winker
|
90122-MC7-670 |
— | ||
|
26
|
26
90501-MA3-720 Collar (6.2x13) |
90501-MA3-720 |
from US $4.24 |
||
|
27
|
27
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $1.57 |
||
|
28
|
28
93500-040140G Screw, pan (4x14) |
93500-040140G |
from US $0.37 |
||
|
29
|
29
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
30
|
30
93901-34480 ScrewTAPPING, 4X16 |
93901-34480 |
from US $0.37 |
||
|
31
|
31
93901-34680 Screw,tap 4x25 |
93901-34680 |
US $0.37 |
||
|
32
|
32
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
33
|
33
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
