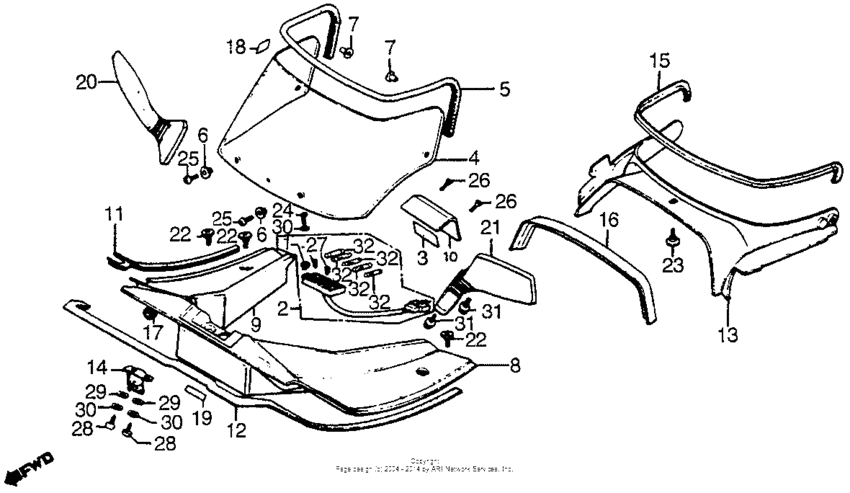

Windscreen Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16572-879-010
Collar, lever setting
|
16572-879-010 |
— | ||
|
2
|
2
38200-MC7-005
Fuse plate assy.
|
38200-MC7-005 |
— | ||
|
3
|
3
38215-MC7-610
Label,fuse
|
38215-MC7-610 |
— | ||
|
4
|
4
64100-MC7-000
Screen,wind
|
64100-MC7-000 |
— | ||
|
5
|
5
64105-MC7-505
Moul set
|
64105-MC7-505 |
— | ||
|
6
|
6
64106-MC7-000
Collar,wind scren
|
64106-MC7-000 |
— | ||
|
7
|
7
64107-MC7-000
Collar,wind
|
64107-MC7-000 |
— | ||
|
8
|
8
64221-MC7-000
Inner panel a
|
64221-MC7-000 |
— | ||
|
9
|
9
64222-MC7-000
Inner panel b.
|
64222-MC7-000 |
— | ||
|
10
|
10
64223-MC7-000
Cover,fuse box
|
64223-MC7-000 |
— | ||
|
11
|
11
64224-MC7-000
Seal rub,a inner
|
64224-MC7-000 |
— | ||
|
12
|
12
64226-MC7-000
Rub.b,in pnl.seal
|
64226-MC7-000 |
— | ||
|
13
|
13
64240-MC7-000
Visor,meter
|
64240-MC7-000 |
— | ||
|
14
|
14
64519-MC7-000
Brkt,inner panal
|
64519-MC7-000 |
— | ||
|
15
|
15
64532-MC7-000
Rub,meter visor
|
64532-MC7-000 |
— | ||
|
16
|
16
64535-MC7-000
Rub,meter seal
|
64535-MC7-000 |
— | ||
|
17
|
17
66219-634-000 Grommet b |
66219-634-000 |
US $1.95 |
||
|
18
|
18
87522-MA3-700
Label,wind cautio
|
87522-MA3-700 |
— | ||
|
19
|
19
87523-102-720
Label
|
87523-102-720 |
— | ||
|
20
|
20
88110-ME7-621
Mirror, r. back
|
88110-ME7-621 |
— | ||
|
21
|
21
88120-ME7-621
Mirror, l. back
|
88120-ME7-621 |
— | ||
|
22
|
22
90110-MC7-000 Screw,in.pnl.set. |
90110-MC7-000 |
US $5.40 |
||
|
23
|
23
90123-MC7-000 Screw,meter visor |
90123-MC7-000 |
US $3.18 |
||
|
24
|
24
93500-050-160-G Screw |
93500-050-160-G |
from US $0.37 |
||
|
25
|
25
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
26
|
26
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
27
|
27
93901-12120 ScrewTAPPING, 3X8 |
93901-12120 |
US $0.37 |
||
|
28
|
28
93901-25280 ScrewTAPPING, 5X12 |
93901-25280 |
from US $0.37 |
||
|
29
|
29
94101-05700 WasherPLAIN, 5MM |
94101-05700 |
from US $0.37 |
||
|
30
|
30
94111-05700 WasherSPRING, 5MM |
94111-05700 |
from US $0.37 |
||
|
31
|
31
95701-0801200 Bolt, flange, 8x12 |
95701-0801200 |
from US $0.62 |
||
|
32
|
32
98200-21500 Fuse b15A |
98200-21500 |
from US $0.62 |
