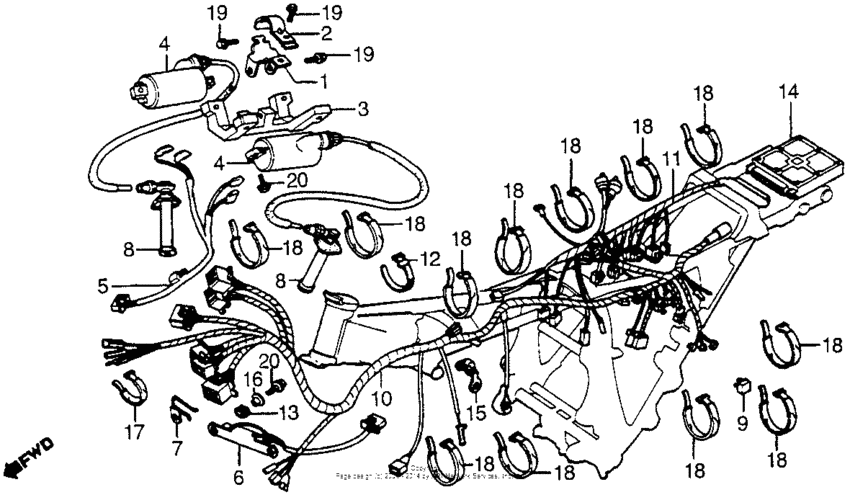

Wire harness + ignition coil Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30403-MC7-000
Brkt, ignition coil
|
30403-MC7-000 |
— | ||
|
2
|
2
30404-MC7-000
Bracket b
|
30404-MC7-000 |
— | ||
|
3
|
3
30405-MC7-000
Stay, ignition coil
|
30405-MC7-000 |
— | ||
|
4
|
4
30510-MC7-000
Coil,ignition
|
30510-MC7-000 |
— | ||
|
5
|
5
30511-MC7-000
Sub-cable
|
30511-MC7-000 |
— | ||
|
6
|
6
30512-MC7-003
Resistor assy.
|
30512-MC7-003 |
— | ||
|
7
|
7
30515-MC7-000
Guide,res.wire
|
30515-MC7-000 |
— | ||
|
8
|
8
30700-MC7-000
Cap assy.,plug
|
30700-MC7-000 |
— | ||
|
9
|
9
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
10
|
10
32100-MC7-000
Harness,wire
|
32100-MC7-000 |
— | ||
|
11
|
11
32101-MC7-000
Harness,sub wire
|
32101-MC7-000 |
— | ||
|
12
|
12
32161-404-610 Band b1, wire |
32161-404-610 |
from US $3.18 |
||
|
13
|
13
34931-MC7-000
Rub,resist mtg.
|
34931-MC7-000 |
— | ||
|
14
|
14
38770-MC7-672RM
Control unit
|
38770-MC7-672RM |
— | ||
|
14
|
14
38770-MC7-671RM
Control unit
|
38770-MC7-671RM |
— | ||
|
15
|
15
50732-MC7-000
Clip,throt.cable
|
50732-MC7-000 |
— | ||
|
16
|
16
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
16
|
16
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
16
|
16
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
17
|
17
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
18
|
18
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
||
|
19
|
19
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
20
|
20
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
