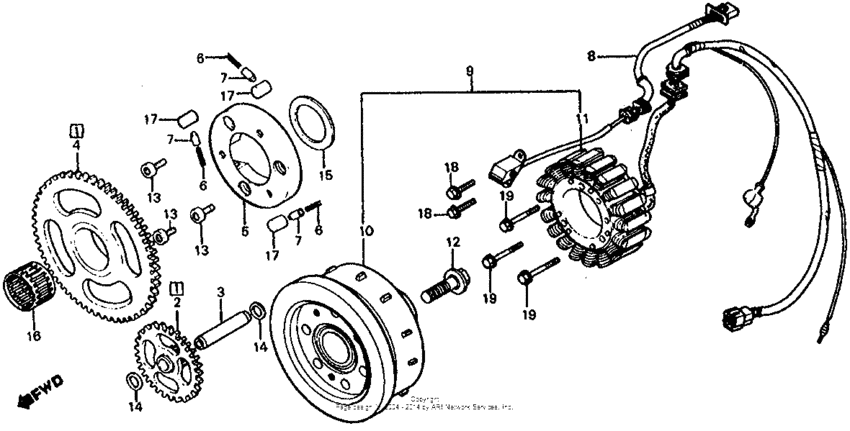

Alternator + starter clutch Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-415-305
Gear set,starting
|
28100-415-305 |
— | ||
|
2
|
2
28102-415-010
Gear,starter red.
|
28102-415-010 |
— | ||
|
3
|
3
28106-ME7-000
Shaft
|
28106-ME7-000 |
— | ||
|
4
|
4
28110-MF5-000
Gear start driven
|
28110-MF5-000 |
— | ||
|
5
|
5
28120-415-000
Outer,start clutc
|
28120-415-000 |
— | ||
|
6
|
6
28125-516-030 Spring |
28125-516-030 |
from US $2.59 |
||
|
7
|
7
28126-516-020 Cap,staringclutch |
28126-516-020 |
from US $10.36 |
||
|
8
|
8
30300-ME7-005
Generator,pulse
|
30300-ME7-005 |
— | ||
|
9
|
9
31100-ME7-005 Gen,flywheel a.c. |
31100-ME7-005 |
US $597.43 |
||
|
10
|
10
31110-ME7-005
Flywheel comp.
|
31110-ME7-005 |
— | ||
|
11
|
11
31120-MC7-005
Stator Comp
|
31120-MC7-005 |
— | ||
|
12
|
12
90002-415-003
Bolt,a.c.gen12x30
|
90002-415-003 |
— | ||
|
13
|
13
90010-KCJ-690 Bolt,socket 8mm |
90010-KCJ-690 |
from US $4.29 |
||
|
14
|
14
90451-708-000
Washer, 12mm
|
90451-708-000 |
— | ||
|
15
|
15
90454-415-000
Washer,thrust37mm
|
90454-415-000 |
— | ||
|
16
|
16
91021-415-005
Bearing, needle, 32mm (tomuson)
|
91021-415-005 |
— | ||
|
17
|
17
91101-516-000 Roller (15x13) |
91101-516-000 |
from US $4.74 |
||
|
18
|
18
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
19
|
19
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
