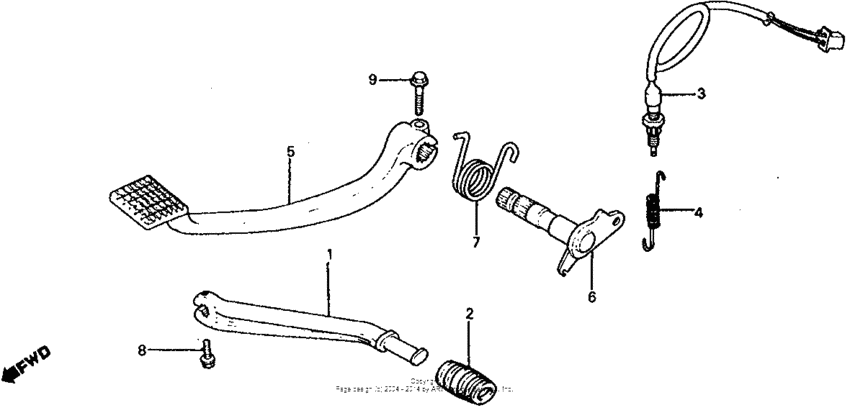

Brake pedal + gearshift pedal Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-MC7-000
Pedal,gear change
|
24701-MC7-000 |
— | ||
|
2
|
2
24781-MC7-000
Rub.,change pedal
|
24781-MC7-000 |
— | ||
|
3
|
3
35350-KA2-405 Switch, rr. stop |
35350-KA2-405 |
from US $17 |
||
|
4
|
4
35357-415-000
Spg,stop sw
|
35357-415-000 |
— | ||
|
5
|
5
46500-MC7-000
Pedal,brake
|
46500-MC7-000 |
— | ||
|
6
|
6
46510-MC7-000
Spindle,rr. brake
|
46510-MC7-000 |
— | ||
|
7
|
7
46514-MC7-000
Spg,brake pedal
|
46514-MC7-000 |
— | ||
|
8
|
8
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
|
9
|
9
95701-0802800 Bolt, flange, 8x28 |
95701-0802800 |
from US $0.74 |
