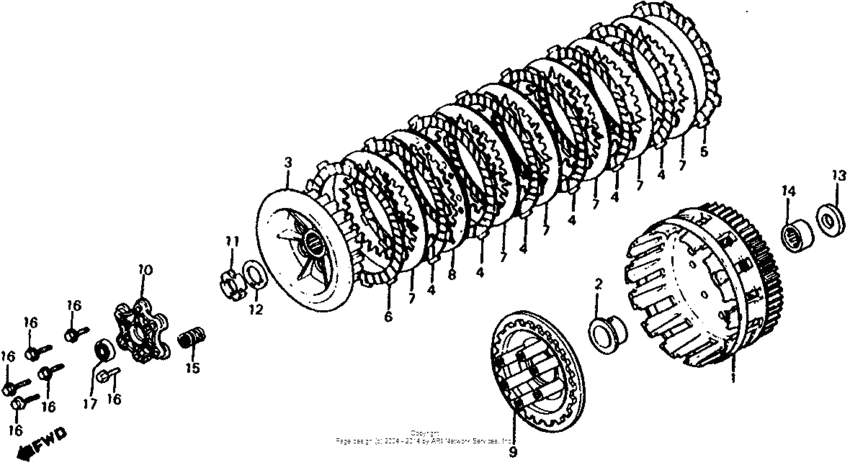

Clutch Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-ME7-000
Clutch (outer)
|
22100-ME7-000 |
— | ||
|
2
|
2
22116-ME7-000
Guide,clutch out
|
22116-ME7-000 |
— | ||
|
3
|
3
22120-ME7-000
Center comp,cluch
|
22120-ME7-000 |
— | ||
|
4
|
4
22201-MC7-000
Disk.clch frictio
|
22201-MC7-000 |
— | ||
|
5
|
5
22201-MG9-000 Disk a, cl friction |
22201-MG9-000 |
from US $14.82 |
||
|
6
|
6
22202-463-000
Disk b friction
|
22202-463-000 |
— | ||
|
7
|
7
22321-371-010 Plate a, clutch |
22321-371-010 |
from US $29.43 |
||
|
8
|
8
22322-463-000
Plate b,clutch
|
22322-463-000 |
— | ||
|
9
|
9
22350-ME7-000
Plate,pressure
|
22350-ME7-000 |
— | ||
|
10
|
10
22360-463-000
Plate, clutch lifter
|
22360-463-000 |
— | ||
|
11
|
11
90204-426-000
Nut, lock (20mm)
|
90204-426-000 |
— | ||
|
12
|
12
90432-ME7-000
Washer,lock
|
90432-ME7-000 |
— | ||
|
13
|
13
90453-ME2-000
Wash,thrust,25mm
|
90453-ME2-000 |
— | ||
|
14
|
14
91021-ME2-003
Needle brg
|
91021-ME2-003 |
— | ||
|
15
|
15
95014-75140 Spring,clutch |
95014-75140 |
from US $1.63 |
||
|
16
|
16
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
17
|
17
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
