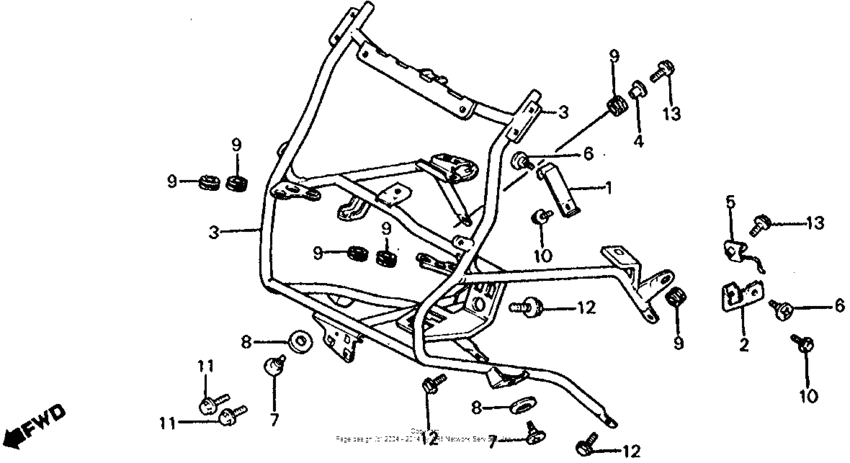

Fairing stay Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64251-MC7-000
Stay,fairing r.
|
64251-MC7-000 |
— | ||
|
2
|
2
64252-MC7-000
Stay,fairing l.
|
64252-MC7-000 |
— | ||
|
3
|
3
64501-ME7-000
Stay,fairing
|
64501-ME7-000 |
— | ||
|
4
|
4
64530-ME7-000
Collar,a,fair.mtg
|
64530-ME7-000 |
— | ||
|
5
|
5
64534-ME7-000
Collar,b,fair.mtg
|
64534-ME7-000 |
— | ||
|
6
|
6
90112-MC7-000 Screw,fairing set |
90112-MC7-000 |
from US $4.44 |
||
|
7
|
7
90112-MJ4-670 Screw, fairing setting |
90112-MJ4-670 |
from US $4.74 |
||
|
8
|
8
90599-ME7-010
Washer fairin set
|
90599-ME7-010 |
— | ||
|
9
|
9
90852-ME7-000
Grom fairing stay
|
90852-ME7-000 |
— | ||
|
10
|
10
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
11
|
11
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
12
|
12
95701-0801200 Bolt, flange, 8x12 |
95701-0801200 |
from US $0.62 |
||
|
13
|
13
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
