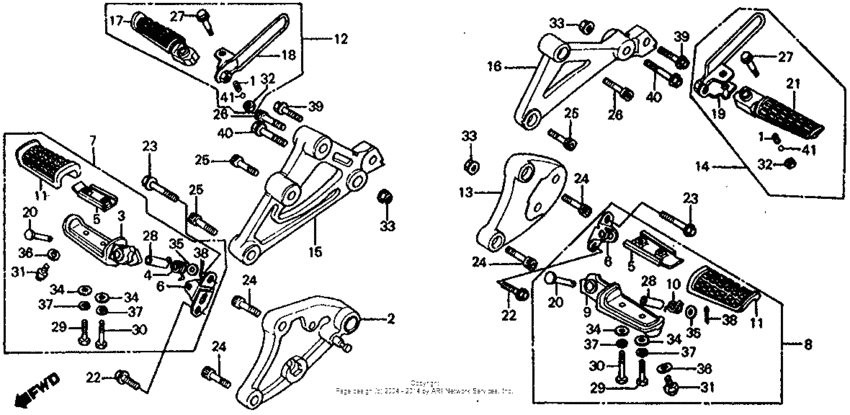

Footpegs Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28333-300-000 Spring |
28333-300-000 |
from US $2.14 |
||
|
2
|
2
50601-MC7-000
Holder,r.step
|
50601-MC7-000 |
— | ||
|
3
|
3
50612-445-840
Arm,r.step
|
50612-445-840 |
— | ||
|
4
|
4
50617-445-840 Spring, r |
50617-445-840 |
from US $3.11 |
||
|
5
|
5
50619-MC7-000
Pl.,step stopper
|
50619-MC7-000 |
— | ||
|
6
|
6
50628-445-840
Bracket,l.step
|
50628-445-840 |
— | ||
|
7
|
7
50630-ME7-000
Step,r.main
|
50630-ME7-000 |
— | ||
|
8
|
8
50640-ME7-000
Step,l.main
|
50640-ME7-000 |
— | ||
|
9
|
9
50642-445-840
Arm,l.step
|
50642-445-840 |
— | ||
|
10
|
10
50644-445-840 Spring, l |
50644-445-840 |
from US $3.26 |
||
|
11
|
11
50661-425-700 Rubber,step |
50661-425-700 |
US $14.14 |
||
|
12
|
12
50700-MC7-000
Step,r.pillion
|
50700-MC7-000 |
— | ||
|
13
|
13
50701-MC7-000
Holder,l.step
|
50701-MC7-000 |
— | ||
|
14
|
14
50705-MC7-000 Step,l.pillion |
50705-MC7-000 |
US $105.21 |
||
|
15
|
15
50711-MC7-000
Brkt,r.pillion
|
50711-MC7-000 |
— | ||
|
16
|
16
50712-MC7-000
Brkt,l.pillion
|
50712-MC7-000 |
— | ||
|
17
|
17
50714-MC7-000
Arm,l.pillion
|
50714-MC7-000 |
— | ||
|
18
|
18
50715-MC7-000
Brkt,r.pillion
|
50715-MC7-000 |
— | ||
|
19
|
19
50716-MC7-000
Brkt,l.pillion
|
50716-MC7-000 |
— | ||
|
20
|
20
50716-438-000
Pin,step joint
|
50716-438-000 |
— | ||
|
21
|
21
50717-MC7-000
Arm,r.pillion
|
50717-MC7-000 |
— | ||
|
22
|
22
90100-438-850 Bolt (8x22) |
90100-438-850 |
from US $5.33 |
||
|
23
|
23
90107-ME7-000 Bolt (8x35) |
90107-ME7-000 |
from US $4.88 |
||
|
24
|
24
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
25
|
25
90117-MC7-000 Bolt, socket (8x40) |
90117-MC7-000 |
US $5.08 |
||
|
26
|
26
90125-MC7-000
Bolt,socket,8x45
|
90125-MC7-000 |
— | ||
|
27
|
27
90187-MC7-000
Bolt,pillion step
|
90187-MC7-000 |
— | ||
|
28
|
28
90501-445-840
Collar,step pivot
|
90501-445-840 |
— | ||
|
29
|
29
92101-05025-0A Bolt, hex. (5x25) |
92101-05025-0A |
from US $0.47 |
||
|
30
|
30
92101-05028-0A Bolt, hex., 5x28 |
92101-05028-0A |
from US $0.44 |
||
|
31
|
31
92501-08012-0A Bolt, cap (8x12) |
92501-08012-0A |
from US $1.33 |
||
|
32
|
32
94001-060200S Nut, hex., 6mm |
94001-060200S |
from US $0.52 |
||
|
33
|
33
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
34
|
34
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
35
|
35
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
36
|
36
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
37
|
37
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
38
|
38
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
39
|
39
95701-0802800 Bolt, flange, 8x28 |
95701-0802800 |
from US $0.74 |
||
|
40
|
40
95701-1004000 Bolt, flange, 10x40 |
95701-1004000 |
from US $0.81 |
||
|
41
|
41
96211-08000 Ball |
96211-08000 |
from US $0.22 |
