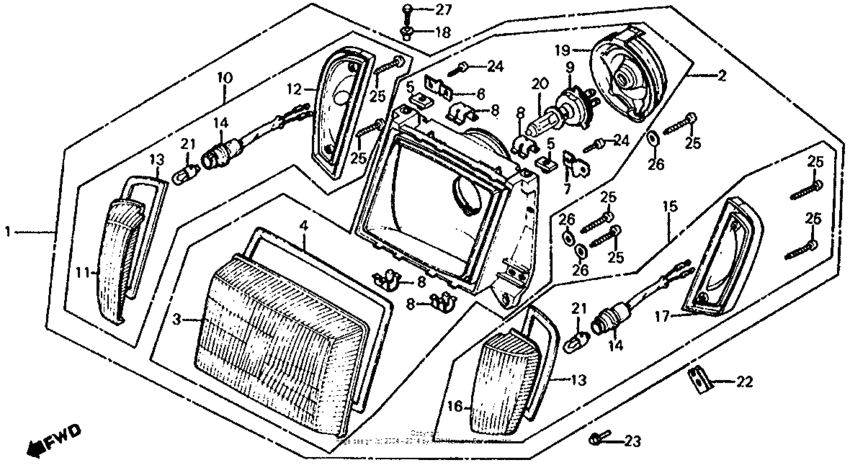

Front combination light Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-MC7-672
Combination,fr.
|
33100-MC7-672 |
— | ||
|
2
|
2
33101-MC7-671
Headlight assy
|
33101-MC7-671 |
— | ||
|
3
|
3
33102-MC7-671
Lens, headlight
|
33102-MC7-671 |
— | ||
|
4
|
4
33103-MC7-611
Packing
|
33103-MC7-611 |
— | ||
|
5
|
5
33109-MC7-611
Nut (6mm)
|
33109-MC7-611 |
— | ||
|
6
|
6
33111-MC7-611
Holder a
|
33111-MC7-611 |
— | ||
|
7
|
7
33112-MC7-611
Holder b
|
33112-MC7-611 |
— | ||
|
8
|
8
33113-MC7-611
Clip, lens holder
|
33113-MC7-611 |
— | ||
|
9
|
9
33114-MC7-611
Hldr, headlight bulb
|
33114-MC7-611 |
— | ||
|
10
|
10
33160-MC7-601
Light,r.position
|
33160-MC7-601 |
— | ||
|
11
|
11
33161-MC7-611
Lens,r.
|
33161-MC7-611 |
— | ||
|
12
|
12
33162-MC7-601
Housing, r
|
33162-MC7-601 |
— | ||
|
13
|
13
33163-MC7-611
Packing
|
33163-MC7-611 |
— | ||
|
14
|
14
33164-MC7-601
Socket,position l
|
33164-MC7-601 |
— | ||
|
15
|
15
33170-MC7-601
Ligh,l.position
|
33170-MC7-601 |
— | ||
|
16
|
16
33171-MC7-611
Lens,l.
|
33171-MC7-611 |
— | ||
|
17
|
17
33172-MC7-601
Housing,l.
|
33172-MC7-601 |
— | ||
|
18
|
18
33713-428-610 Collar tail light |
33713-428-610 |
US $3.92 |
||
|
19
|
19
33905-MC7-611
Cover,rubber
|
33905-MC7-611 |
— | ||
|
20
|
20
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
20
|
20
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
21
|
21
34903-388-611 Bulb (12v4w) (t8/4) |
34903-388-611 |
from US $3.91 |
||
|
22
|
22
64529-MC7-000 Nut, clip (6mm) |
64529-MC7-000 |
US $3.40 |
||
|
23
|
23
90114-428-900
Bolt b,air/c case
|
90114-428-900 |
— | ||
|
24
|
24
93901-34220 ScrewTAPPING, 4X10 |
93901-34220 |
from US $0.37 |
||
|
25
|
25
93901-35420 Screw,tapping5x20 |
93901-35420 |
from US $0.37 |
||
|
26
|
26
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
27
|
27
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
