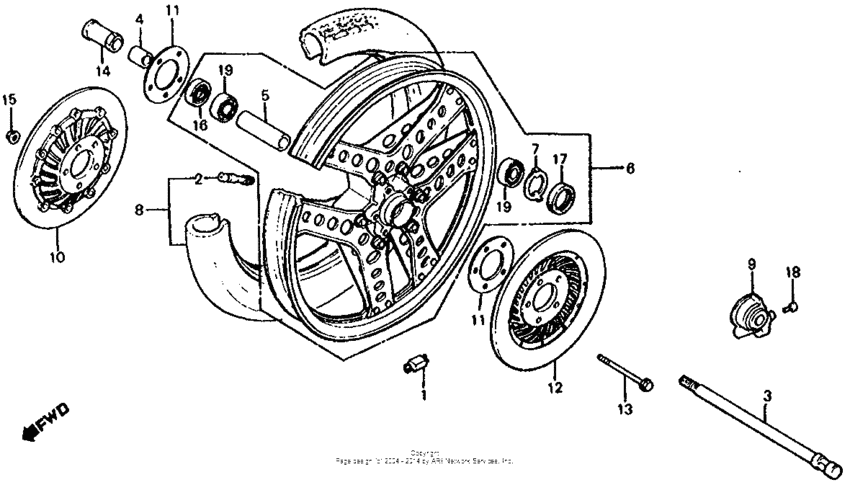

Front wheel + disc Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42704-MC7-000 Balance(10g) |
42704-MC7-000 |
US $8.16 |
||
|
1
|
1
42705-MC7-000 Balance(20g) |
42705-MC7-000 |
US $8.16 |
||
|
1
|
1
42706-MC7-000
Balance(30g)
|
42706-MC7-000 |
— | ||
|
2
|
2
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
3
|
3
44301-MA4-670
Axle,fr.wheel
|
44301-MA4-670 |
— | ||
|
4
|
4
44311-460-840 Colr, fr. wheel side |
44311-460-840 |
US $14.51 |
||
|
5
|
5
44620-410-000
Collar, fr
|
44620-410-000 |
— | ||
|
6
|
6
44650-MB7-610
Wheel comp.,fr
|
44650-MB7-610 |
— | ||
|
7
|
7
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
8
|
8
44710-MG5-671 Tire (100/90v18) |
44710-MG5-671 |
US $83.79 |
||
|
8
|
8
44710-MG5-672
Tire (100/90v18)
|
44710-MG5-672 |
— | ||
|
9
|
9
44800-MC7-013
Gear box assy.(sp
|
44800-MC7-013 |
— | ||
|
10
|
10
45120-MB7-610
Disk comp.,r.fr.
|
45120-MB7-610 |
— | ||
|
11
|
11
45128-445-630 Shim, damping |
45128-445-630 |
US $4.07 |
||
|
12
|
12
45220-MB7-610
Disk comp.,l.fr.
|
45220-MB7-610 |
— | ||
|
13
|
13
90103-438-000
Bolt,flange 8x104
|
90103-438-000 |
— | ||
| replacement | |||||
|
13
|
13
90113-GY8-900 Bolt, flange (8x104) |
90113-GY8-900 |
US $3.02 |
||
|
14
|
14
90306-425-870
Nut,axle,12mm
|
90306-425-870 |
— | ||
|
15
|
15
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
16
|
16
91252-MC7-003 Dust seal (22x42x7) |
91252-MC7-003 |
from US $6.07 |
||
|
17
|
17
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $3.60 |
||
|
18
|
18
93700-050200G Screw, oval (5x20) |
93700-050200G |
from US $0.37 |
||
|
19
|
19
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
