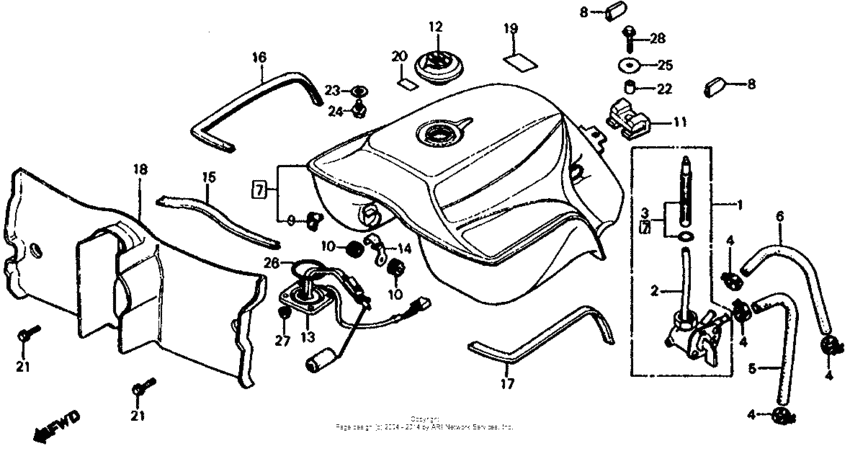

Fuel tank Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-MC7-005
Cock assy., fuel
|
16950-MC7-005 |
— | ||
|
2
|
2
16951-MC7-005
Body comp cock
|
16951-MC7-005 |
— | ||
|
3
|
3
16952-MC7-005
Screen,fuel strn.
|
16952-MC7-005 |
— | ||
|
4
|
4
16969-MC7-000
Clip, fuel hose
|
16969-MC7-000 |
— | ||
|
5
|
5
16970-MC7-000
Hose a,fuel
|
16970-MC7-000 |
— | ||
|
6
|
6
16971-MC7-000
Hose c,fuel
|
16971-MC7-000 |
— | ||
|
7
|
7
175A1-ME7-010ZA
Tank *nh-121p-a*
|
175A1-ME7-010ZA |
— | ||
|
8
|
8
17512-MC5-000
Rub,seat setting
|
17512-MC5-000 |
— | ||
|
9
|
9
17521-ME7-300
Plate, rubber
|
17521-ME7-300 |
— | ||
|
10
|
10
17611-KE8-000 Rubber, fr |
17611-KE8-000 |
from US $6.36 |
||
|
11
|
11
17613-MC7-000
Cush,fuel tank rr
|
17613-MC7-000 |
— | ||
|
12
|
12
17620-MC7-003
Cap, fuel filler
|
17620-MC7-003 |
— | ||
|
13
|
13
37800-MC7-008
Unit assy.,fuel
|
37800-MC7-008 |
— | ||
|
14
|
14
50732-MC7-000
Clip,throt.cable
|
50732-MC7-000 |
— | ||
|
15
|
15
64200-MC7-000
Seal rub,fueltank
|
64200-MC7-000 |
— | ||
|
16
|
16
64225-MC7-000
Rub,r.tank side
|
64225-MC7-000 |
— | ||
|
17
|
17
64227-MC7-000
Rub,l.tank side
|
64227-MC7-000 |
— | ||
|
18
|
18
64229-MC7-000
Apron,fuel tank
|
64229-MC7-000 |
— | ||
|
19
|
19
87560-181-760ZE Mark (typeb) |
87560-181-760ZE |
from US $3.92 |
||
|
19
|
19
87560-181-760ZD
Label *nh1*
|
87560-181-760ZD |
— | ||
|
20
|
20
87562-MC7-670
Mark,fuel caution
|
87562-MC7-670 |
— | ||
|
21
|
21
90111-187-000 BoltFLANGE, 6MM |
90111-187-000 |
from US $4 |
||
|
22
|
22
90324-300-000 Collar (8mm) |
90324-300-000 |
from US $4.59 |
||
|
23
|
23
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
23
|
23
90407-259-000 Gasket (12.5x20) |
90407-259-000 |
from US $1.41 |
||
|
24
|
24
90473-461-000
Bolt,flange,12x15
|
90473-461-000 |
— | ||
|
25
|
25
90534-011-000 Washer, 8.3mm |
90534-011-000 |
from US $2.22 |
||
|
26
|
26
91305-MC7-000 O-ring (39.5x5) |
91305-MC7-000 |
from US $2.86 |
||
|
27
|
27
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
28
|
28
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
