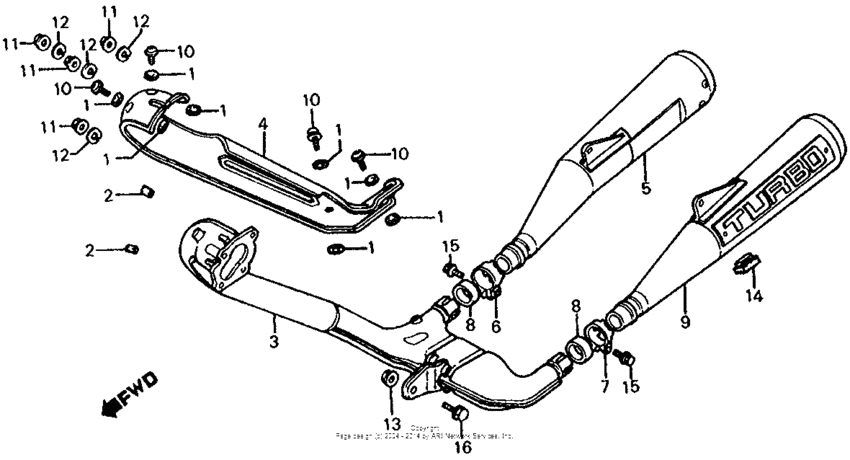

Muffler Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18292-MM9-740 Gasket, protector |
18292-MM9-740 |
from US $4.20 |
||
|
2
|
2
18293-147-000 Rubber |
18293-147-000 |
from US $2.87 |
||
|
3
|
3
18320-ME7-000
Pipe comp.,ex.
|
18320-ME7-000 |
— | ||
|
4
|
4
18325-ME7-010
Protect,ex,pipe
Use up to Frame SN DM000974 |
18325-ME7-010 |
— | ||
|
5
|
5
18335-ME7-007 Muffler comp.,r. |
18335-ME7-007 |
US $450.76 |
||
|
6
|
6
18375-MG7-000 Band, r. rr. muffler |
18375-MG7-000 |
from US $14.80 |
||
|
7
|
7
18376-MG7-000 Band, l. rr. muffler |
18376-MG7-000 |
from US $14.01 |
||
|
8
|
8
18392-MG7-750 Gasket, rr. muffler |
18392-MG7-750 |
from US $13.32 |
||
|
9
|
9
18435-ME7-007 Muffler comp.,l. |
18435-ME7-007 |
US $450.76 |
||
|
10
|
10
90136-MC7-000 Screw-washer (6x12) |
90136-MC7-000 |
from US $4 |
||
|
11
|
11
90217-657-000 Nut, SPECIAL, 8MM |
90217-657-000 |
from US $1.68 |
||
|
12
|
12
90406-MC7-003
Washer,spring,8mm
|
90406-MC7-003 |
— | ||
|
13
|
13
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
14
|
14
95011-64000 Rubber d,stand |
95011-64000 |
from US $1.33 |
||
|
15
|
15
95701-0804000 Bolt, flange, 8x40 |
95701-0804000 |
from US $0.74 |
||
|
16
|
16
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
