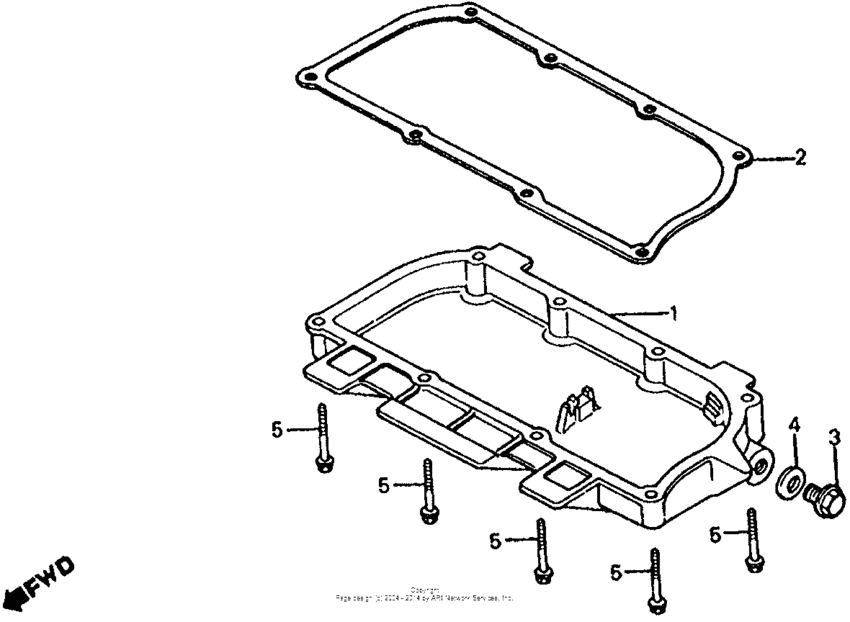

Oil pan Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11121-ME2-010
Pan, oil
|
11121-ME2-010 |
— | ||
|
2
|
2
11128-ME2-306
Gasket, oil pan
|
11128-ME2-306 |
— | ||
|
3
|
3
90081-MC7-000 Bolt, plug, 14mm |
90081-MC7-000 |
from US $8.88 |
||
|
4
|
4
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
5
|
5
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
