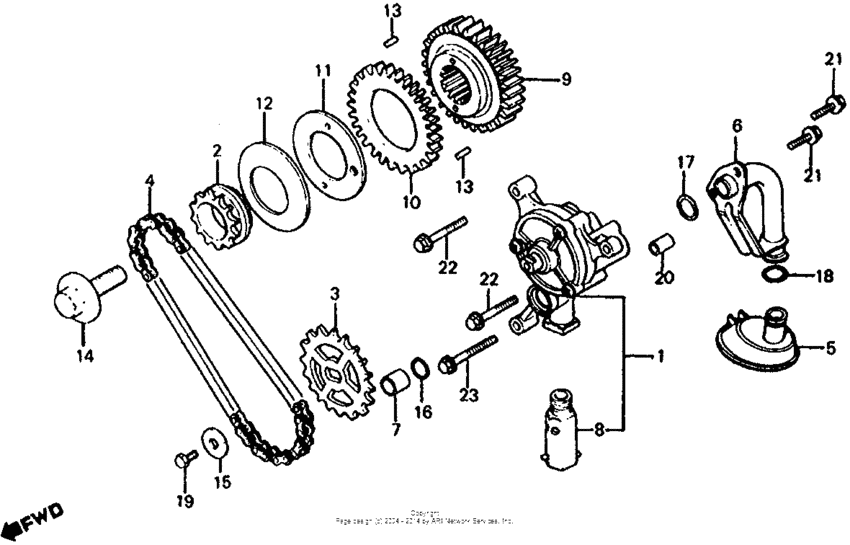

Oil pump + primary drive gear Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-MC7-000
Pump assy.,oil
|
15100-MC7-000 |
— | ||
|
2
|
2
15115-ME7-000
Sprocket
|
15115-ME7-000 |
— | ||
|
3
|
3
15116-ME7-000
Sprocket
|
15116-ME7-000 |
— | ||
|
4
|
4
15140-MC7-000
Chain,oil pump
|
15140-MC7-000 |
— | ||
|
5
|
5
15141-ME7-000
Body,oil staraine
|
15141-ME7-000 |
— | ||
|
6
|
6
15143-ME7-000
Pipe, oil strainer
|
15143-ME7-000 |
— | ||
|
7
|
7
15155-300-000 Collar, o-ring |
15155-300-000 |
from US $3.11 |
||
|
8
|
8
15220-415-000
Valve,relief
|
15220-415-000 |
— | ||
|
9
|
9
23121-ME7-000
Gear (40t)
|
23121-ME7-000 |
— | ||
|
10
|
10
23122-ME7-000
Gear,primary sub
|
23122-ME7-000 |
— | ||
|
11
|
11
23123-415-000
Plate,side
|
23123-415-000 |
— | ||
|
12
|
12
23125-ME7-305
Spring,disk
|
23125-ME7-305 |
— | ||
|
13
|
13
30905-216-000 Pin (3x5.2) |
30905-216-000 |
from US $2.72 |
||
|
14
|
14
90013-MC7-000
Bolt,ubs,12x28
|
90013-MC7-000 |
— | ||
|
15
|
15
90486-028-000 Washer, spark advancer setting |
90486-028-000 |
from US $2.65 |
||
|
16
|
16
91301-268-020 O ring, 14m/m |
91301-268-020 |
from US $4.07 |
||
|
17
|
17
91302-377-000 O-ring (15x2.5) |
91302-377-000 |
from US $5.18 |
||
|
18
|
18
91363-MC7-004
O-ring,15.3x3.5
|
91363-MC7-004 |
— | ||
|
19
|
19
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
20
|
20
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
21
|
21
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
22
|
22
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
23
|
23
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
