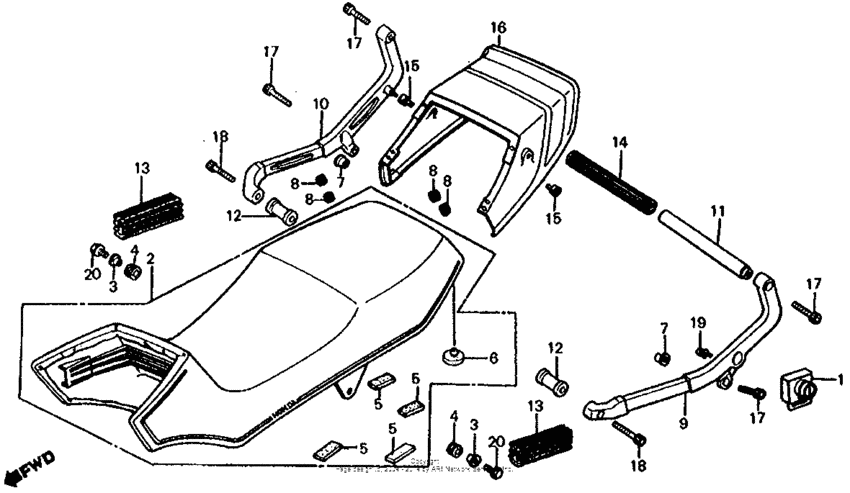

Seat + rear cowl Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50710-ME7-003
Holder,helmet
|
50710-ME7-003 |
— | ||
|
2
|
2
77200-ME7-405
Seat, double
|
77200-ME7-405 |
— | ||
|
3
|
3
77201-ME7-000 Collar, seat setting |
77201-ME7-000 |
from US $3.93 |
||
|
4
|
4
77202-ME7-000
Grommet,seat set.
|
77202-ME7-000 |
— | ||
|
5
|
5
77204-312-000 Rubber, seat setting |
77204-312-000 |
from US $4.74 |
||
|
6
|
6
77211-438-000 Rubber,seat stop. |
77211-438-000 |
US $6.38 |
||
|
7
|
7
83515-428-000 Collar, tool box |
83515-428-000 |
US $3.18 |
||
| replacement | |||||
|
7
|
7
83515-KF9-900 Collar, tool box |
83515-KF9-900 |
US $3.18 |
||
|
8
|
8
83551-240-300 Grommet, air cleaner case |
83551-240-300 |
from US $0.81 |
||
|
9
|
9
83601-ME7-000
Grip,l.rr.
|
83601-ME7-000 |
— | ||
|
10
|
10
83602-MC7-000
Grip,r.rr.
|
83602-MC7-000 |
— | ||
|
11
|
11
83603-MC7-000
Grip,rr.cross
|
83603-MC7-000 |
— | ||
|
12
|
12
83604-MC7-000
Collar,grip side
|
83604-MC7-000 |
— | ||
|
13
|
13
83605-MC7-000
Rubber a,grip
|
83605-MC7-000 |
— | ||
|
14
|
14
83606-MC7-000
Rubber b,rr.grip
|
83606-MC7-000 |
— | ||
|
15
|
15
83607-MC7-000
Cap,rr.grip cowl
|
83607-MC7-000 |
— | ||
|
16
|
16
83910-ME7-000ZB
Cowl sub *nh121pa*
|
83910-ME7-000ZB |
— | ||
|
17
|
17
90116-125-782
Bolt, socket (8mm)
|
90116-125-782 |
— | ||
|
18
|
18
90166-MC7-000
Bolt,socket,8x58
|
90166-MC7-000 |
— | ||
|
19
|
19
93891-060-250-7 Screw-washer, 6x25 |
93891-060-250-7 |
from US $0.59 |
||
|
20
|
20
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
