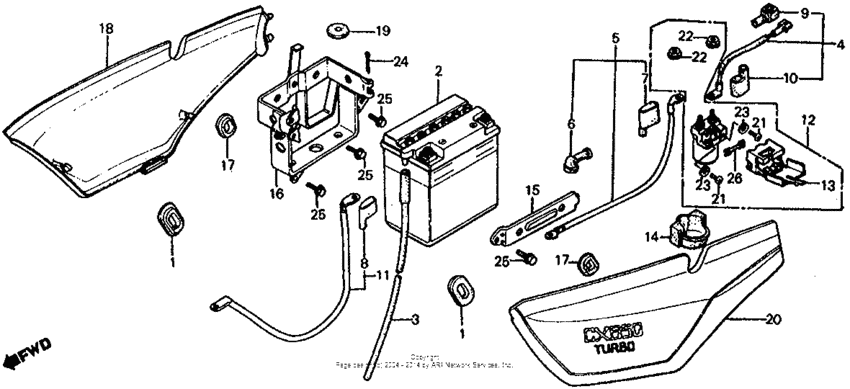

Side cover + battery Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
31500-425-672AH Battery assy |
31500-425-672AH |
US $85.56 |
||
|
3
|
3
31502-MB1-405
Tube bat,breather
|
31502-MB1-405 |
— | ||
|
4
|
4
32401-MA1-730
Cable,starter bat
|
32401-MA1-730 |
— | ||
|
5
|
5
32410-ME7-000 Cable,start,motor |
32410-ME7-000 |
US $34.07 |
||
|
6
|
6
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
7
|
7
32412-426-000
Cover,terminal
|
32412-426-000 |
— | ||
|
8
|
8
32412-443-900
Cover a
|
32412-443-900 |
— | ||
|
9
|
9
32414-MA1-730
Cover,terminal
|
32414-MA1-730 |
— | ||
|
10
|
10
32416-460-000 Cover b, magnetic switch |
32416-460-000 |
US $5.25 |
||
|
11
|
11
32601-ME7-000
Cable,bat.earth
|
32601-ME7-000 |
— | ||
|
12
|
12
35850-MB0-007 Sw assy,start.mag |
35850-MB0-007 |
from US $111.52 |
||
|
13
|
13
35852-MB0-007
Cover, fuse
|
35852-MB0-007 |
— | ||
|
14
|
14
35856-MB0-007 Rubber |
35856-MB0-007 |
from US $7.39 |
||
|
15
|
15
50330-ME7-000
Band b
|
50330-ME7-000 |
— | ||
|
16
|
16
50332-MC7-000
Box comp.,battery
|
50332-MC7-000 |
— | ||
|
17
|
17
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
18
|
18
83610-ME7-000ZA
Sub cov*nh-121p-a
|
83610-ME7-000ZA |
— | ||
|
19
|
19
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.40 |
||
|
20
|
20
83710-ME7-000ZA
Sub,cov*nh-121p-a
|
83710-ME7-000ZA |
— | ||
|
21
|
21
93500-040-060-H ScrewPAN, 4X6 |
93500-040-060-H |
from US $0.18 |
||
|
22
|
22
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
23
|
23
94111-04800 WasherSPRING, 4MM |
94111-04800 |
from US $0.37 |
||
|
24
|
24
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
25
|
25
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
26
|
26
9820053000 Fuse f (30a) |
9820053000 |
from US $0.74 |
