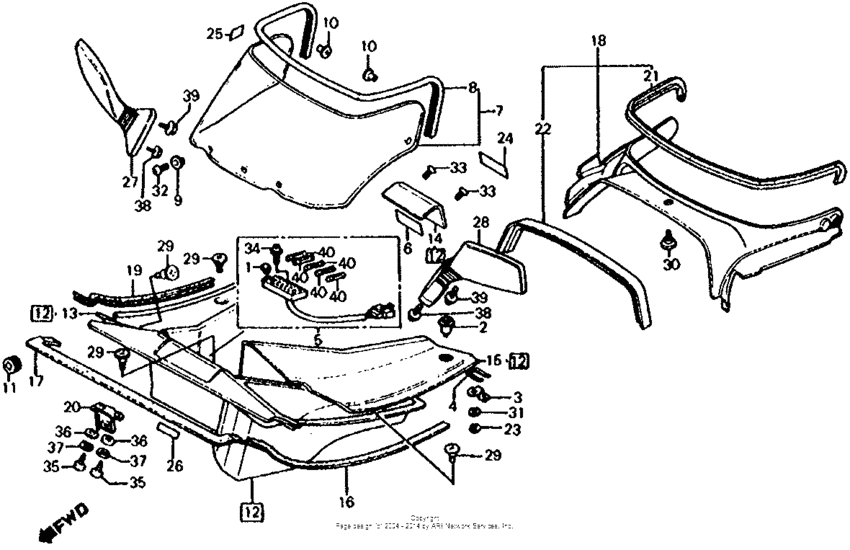

Windscreen + inner panel Diagram Honda CX650
- Year
- 1983
- Model code
- CX650T A
- Sales region
- USA
- Frame
- JH2RC160*DM000023 - JH2RC160*DM001139
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16572-879-010
Collar, lever setting
|
16572-879-010 |
— | ||
|
2
|
2
37220-MC5-003
Lock,seat cowl
|
37220-MC5-003 |
— | ||
|
3
|
3
37221-ME7-000
Plate,lock
|
37221-ME7-000 |
— | ||
|
4
|
4
37222-MC5-000
Sprg,lock key set
|
37222-MC5-000 |
— | ||
|
5
|
5
38200-MC7-005
Fuse plate assy.
|
38200-MC7-005 |
— | ||
|
6
|
6
38215-MC7-610
Label,fuse
|
38215-MC7-610 |
— | ||
|
7
|
7
64100-ME7-000
Screen,wind
|
64100-ME7-000 |
— | ||
|
8
|
8
64105-MC7-505
Moul set
|
64105-MC7-505 |
— | ||
|
9
|
9
64106-MC7-000
Collar,wind scren
|
64106-MC7-000 |
— | ||
|
10
|
10
64107-ME7-000
Collar,wind scree
|
64107-ME7-000 |
— | ||
|
11
|
11
64219-ME7-000
Grom in pnl setng
|
64219-ME7-000 |
— | ||
|
12
|
12
64220-ME7-000
Pnl,fairing in.
|
64220-ME7-000 |
— | ||
|
13
|
13
64222-MC7-000
Inner panel b.
|
64222-MC7-000 |
— | ||
|
14
|
14
64223-MC7-000
Cover,fuse box
|
64223-MC7-000 |
— | ||
|
15
|
15
64224-ME7-000
Cov inn panel
|
64224-ME7-000 |
— | ||
|
16
|
16
64225-ME7-000
Rub.c,in.pnl.seal
|
64225-ME7-000 |
— | ||
|
17
|
17
64226-ME7-000
Rub.b,in.pnl.seal
|
64226-ME7-000 |
— | ||
|
18
|
18
64240-MC7-000
Visor,meter
|
64240-MC7-000 |
— | ||
|
19
|
19
64244-ME7-000
Seal rub a in pnl
|
64244-ME7-000 |
— | ||
|
20
|
20
64519-MC7-000
Brkt,inner panal
|
64519-MC7-000 |
— | ||
|
21
|
21
64532-MC7-000
Rub,meter visor
|
64532-MC7-000 |
— | ||
|
22
|
22
64535-MC7-000
Rub,meter seal
|
64535-MC7-000 |
— | ||
|
23
|
23
73146-538-000 Clip,lock nut |
73146-538-000 |
US $3.15 |
||
|
24
|
24
87517-MB0-770ZC
Label,caut*a-03*
|
87517-MB0-770ZC |
— | ||
|
25
|
25
87522-MA3-700
Label,wind cautio
|
87522-MA3-700 |
— | ||
|
26
|
26
87523-102-720
Label
|
87523-102-720 |
— | ||
|
27
|
27
88110-ME7-013
Mirror assy.,r.
|
88110-ME7-013 |
— | ||
|
28
|
28
88120-ME7-013
Mirror assy.,l.
|
88120-ME7-013 |
— | ||
|
29
|
29
90106-MM4-000 Screw, pan (6x14) |
90106-MM4-000 |
from US $0.59 |
||
|
30
|
30
90123-MC7-000 Screw,meter visor |
90123-MC7-000 |
US $3.18 |
||
|
31
|
31
90535-MA3-000
Washer,spg.10mm
|
90535-MA3-000 |
— | ||
|
32
|
32
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
33
|
33
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
34
|
34
93892-050-160-7 Screw-washer5X16 |
93892-050-160-7 |
from US $0.44 |
||
|
35
|
35
93901-25280 ScrewTAPPING, 5X12 |
93901-25280 |
from US $0.37 |
||
|
36
|
36
94101-05700 WasherPLAIN, 5MM |
94101-05700 |
from US $0.37 |
||
|
37
|
37
94111-05700 WasherSPRING, 5MM |
94111-05700 |
from US $0.37 |
||
|
38
|
38
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
39
|
39
95701-0801200 Bolt, flange, 8x12 |
95701-0801200 |
from US $0.62 |
||
|
40
|
40
98200-21500 Fuse b15A |
98200-21500 |
from US $0.62 |
