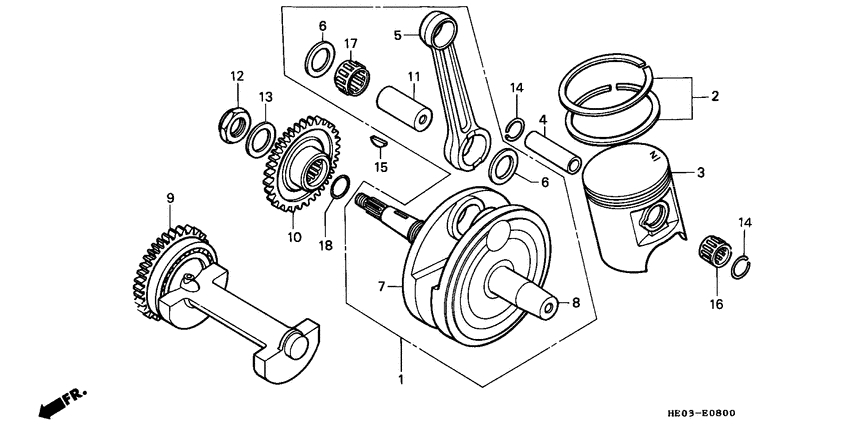

Piston/crankshaft Diagram Honda FL400
- Year
- 1989
- Model code
- FL400RK
- Sales region
- Europe
- Frame
- JH3TE160*KK000776 - JH3TE160*KK004112
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-HE0-000
Superceded
- 5001659 |
13000-HE0-000 |
— | ||
| replacement | |||||
|
1
|
1
13000-HE0-010
Crankshaft
- 5001659 |
13000-HE0-010 |
— | ||
|
1
|
1
13000-HE0-010
Crankshaft
5001660 - |
13000-HE0-010 |
— | ||
|
2
|
2
13011-HE0-305
Ring set (std)
|
13011-HE0-305 |
— | ||
|
2
|
2
13012-HE0-305
Ring set (os) (0.25)
|
13012-HE0-305 |
— | ||
|
2
|
2
13013-HE0-305
Ring set (os) (0.50)
|
13013-HE0-305 |
— | ||
|
3
|
3
13101-HE0-000
Superceded
- 5000870 |
13101-HE0-000 |
— | ||
| replacement | |||||
|
3
|
3
13101-HE0-505
Piston comp. a
- 5000870 |
13101-HE0-505 |
— | ||
|
3
|
3
13102-HE0-000
Superceded
- 5000870 |
13102-HE0-000 |
— | ||
| replacement | |||||
|
3
|
3
13101-HE0-505
Piston comp. a
- 5000870 |
13101-HE0-505 |
— | ||
|
3
|
3
13103-HE0-000
Superceded
- 5000870 |
13103-HE0-000 |
— | ||
| replacement | |||||
|
3
|
3
13101-HE0-505
Piston comp. a
- 5000870 |
13101-HE0-505 |
— | ||
|
3
|
3
13101-HE0-010
Superceded
5000871 - |
13101-HE0-010 |
— | ||
| replacement | |||||
|
3
|
3
13101-HE0-505
Piston comp. a
5000871 - |
13101-HE0-505 |
— | ||
|
3
|
3
13102-HE0-010
Superceded
5000871 - |
13102-HE0-010 |
— | ||
| replacement | |||||
|
3
|
3
13101-HE0-505
Piston comp. a
5000871 - |
13101-HE0-505 |
— | ||
|
3
|
3
13103-HE0-010
Superceded
5000871 - |
13103-HE0-010 |
— | ||
| replacement | |||||
|
3
|
3
13101-HE0-505
Piston comp. a
5000871 - |
13101-HE0-505 |
— | ||
|
3
|
3
13102-HE0-305
Superceded
- 5000870 |
13102-HE0-305 |
— | ||
| replacement | |||||
|
3
|
3
13102-HE0-315
Piston (os) (0.25)
- 5000870 |
13102-HE0-315 |
— | ||
|
3
|
3
13102-HE0-315
Piston (os) (0.25)
5000871 - |
13102-HE0-315 |
— | ||
|
3
|
3
13103-HE0-305
Superceded
- 5000870 |
13103-HE0-305 |
— | ||
| replacement | |||||
|
3
|
3
13103-HE0-315
Piston (os) (0.50)
- 5000870 |
13103-HE0-315 |
— | ||
|
3
|
3
13103-HE0-315
Piston (os) (0.50)
5000871 - |
13103-HE0-315 |
— | ||
|
4
|
4
13111-HE0-000
Pin,piston
|
13111-HE0-000 |
— | ||
|
5
|
5
13201-HE0-300
Rod,connecting
- 5001659 |
13201-HE0-300 |
— | ||
| replacement | |||||
|
5
|
5
13201-HE0-310
Rod,connecting
- 5001659 |
13201-HE0-310 |
— | ||
|
5
|
5
13201-HE0-310
Rod,connecting
5001660 - |
13201-HE0-310 |
— | ||
|
6
|
6
13202-KA5-741
Plate
|
13202-KA5-741 |
— | ||
|
7
|
7
13311-HE0-300
Crankshaft, r.
|
13311-HE0-300 |
— | ||
|
8
|
8
13321-HE0-300
Crankshaft, l
|
13321-HE0-300 |
— | ||
|
9
|
9
13350-HE0-000
Weight comp.,bala
|
13350-HE0-000 |
— | ||
|
10
|
10
13355-HE0-000
Gear,bal.drive
|
13355-HE0-000 |
— | ||
|
11
|
11
13381-HE0-300
Pin a,crank
|
13381-HE0-300 |
— | ||
|
11
|
11
13382-HE0-300
Pin b,crank
|
13382-HE0-300 |
— | ||
|
11
|
11
13383-HE0-300 Pin c,crank |
13383-HE0-300 |
US $44.35 |
||
|
12
|
12
90232-HE0-000
Nut,lock,30mm
|
90232-HE0-000 |
— | ||
|
13
|
13
90460-HE0-000
Washer,thrust,30x
|
90460-HE0-000 |
— | ||
|
14
|
14
90601-KA5-000 Clip, piston pin, 1.2x20 |
90601-KA5-000 |
from US $1.85 |
||
|
15
|
15
90742-HE0-000
Key,woodruff,25x1
|
90742-HE0-000 |
— | ||
|
16
|
16
91003-HE0-003
Brg,con-rod s end
|
91003-HE0-003 |
— | ||
|
17
|
17
91004-HE0-003
Brg,con-rod l end
|
91004-HE0-003 |
— | ||
|
17
|
17
91004-HE0-004
Bearing,connectin
|
91004-HE0-004 |
— | ||
| replacement | |||||
|
17
|
17
91004-HE0-003
Brg,con-rod l end
|
91004-HE0-003 |
— | ||
|
17
|
17
91005-HE0-003
Brg,con-rod l end
|
91005-HE0-003 |
— | ||
|
17
|
17
91005-HE0-004
Bearing,connectin
|
91005-HE0-004 |
— | ||
| replacement | |||||
|
17
|
17
91005-HE0-003
Brg,con-rod l end
|
91005-HE0-003 |
— | ||
|
17
|
17
91006-HE0-003
Brg,con-rod l end
|
91006-HE0-003 |
— | ||
|
17
|
17
91006-HE0-004
Bearing,connectin
|
91006-HE0-004 |
— | ||
| replacement | |||||
|
17
|
17
91006-HE0-003
Brg,con-rod l end
|
91006-HE0-003 |
— | ||
|
18
|
18
91304-MG7-003 O-ring (27.4x2.4) |
91304-MG7-003 |
from US $5.03 |
||
