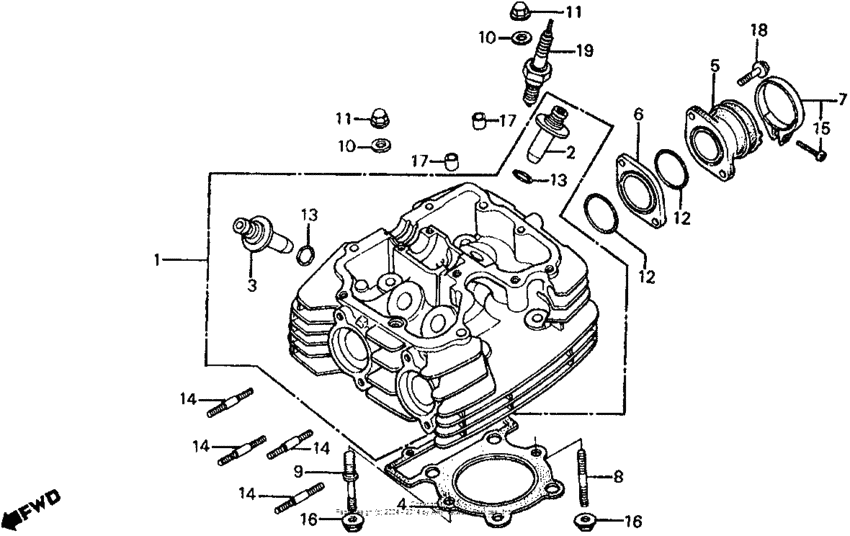

Cylinder head Diagram Honda FT500
- Year
- 1983
- Model code
- FT500 A
- Sales region
- USA
- Frame
- JH2PC070*DM000001 - JH2PC070*DM002498
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-MC8-010
Cylinder head
|
12200-MC8-010 |
— | ||
|
2
|
2
12231-429-305
Guide, valve
|
12231-429-305 |
— | ||
|
3
|
3
12231-429-305
Guide, valve
|
12231-429-305 |
— | ||
|
4
|
4
06130-MC4-000
Gasket, cyl hd
|
06130-MC4-000 |
— | ||
|
5
|
5
16211-MC8-003
Insulator,carb.
|
16211-MC8-003 |
— | ||
|
6
|
6
16215-429-306
Ins,carb
|
16215-429-306 |
— | ||
|
7
|
7
9501856200 Band (56) |
9501856200 |
from US $3.42 |
||
|
8
|
8
90064-634-000 BoltSTUD, 8X50MM |
90064-634-000 |
US $5.55 |
||
|
9
|
9
90087-MC8-000
Bolt,stud,8mm
|
90087-MC8-000 |
— | ||
|
10
|
10
90441-429-000
Washer,8mm
|
90441-429-000 |
— | ||
|
11
|
11
90443-107-000 Nut, cap, 8mm |
90443-107-000 |
from US $2.23 |
||
|
12
|
12
91271-429-000
O-ring,40x2.4
|
91271-429-000 |
— | ||
|
13
|
13
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
14
|
14
92900-06025-0E Bolt, stud (6x25) |
92900-06025-0E |
from US $0.59 |
||
|
15
|
15
93500-050250G Screw, pan, 5x25 |
93500-050250G |
from US $0.44 |
||
|
16
|
16
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
17
|
17
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
18
|
18
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
18
|
18
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
18
|
18
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
19
|
19
9806938719 Spark plug (dr8es-l) |
9806938719 |
from US $3.49 |
||
|
19
|
19
9806957719 Spark plug (dr7es)(Optional). |
9806957719 |
from US $3.57 |
||
|
19
|
19
98069-57726 Plug, spark (x22esr-u) (denso)(Optional). |
98069-57726 |
from US $3.81 |
||
|
19
|
19
9806958719 Spark plug (dr8es)(Optional). |
9806958719 |
from US $4.08 |
||
|
19
|
19
9806958726 S/plg (x24esr-u) |
9806958726 |
from US $3.96 |
||
|
19
|
19
9806959726 S/plg (x27esr-u)(Optional). |
9806959726 |
from US $3.71 |
||
