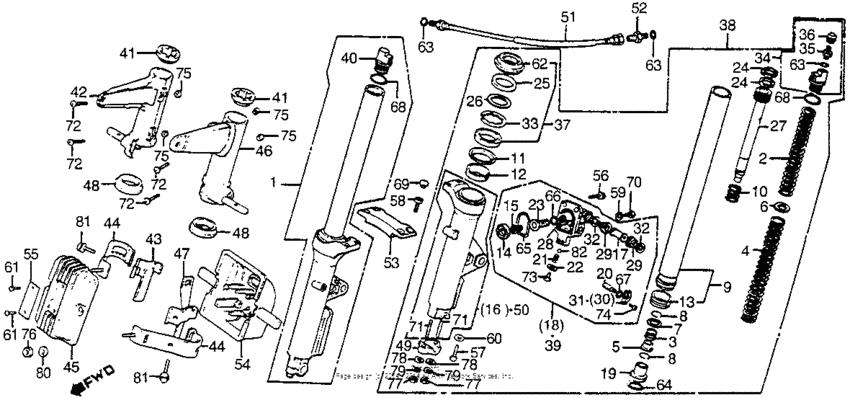

Gl1100/ifront shock absorber Diagram Honda GL1100 Gold Wing
- Year
- 1983
- Model code
- GL1100 A
- Sales region
- USA
- Frame
- 1HFSC020*DA300101 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-MB9-662
S/abs assy., r. fr.
|
51400-MB9-662 |
— | ||
|
2
|
2
51401-463-003
Spg a fr cushion
|
51401-463-003 |
— | ||
|
3
|
3
51402-MB7-611 Spring, oil lock |
51402-MB7-611 |
US $7.97 |
||
|
4
|
4
51402-MB9-781
Spring,b,fr.cush
|
51402-MB9-781 |
— | ||
|
5
|
5
51403-MB7-611 Valve, oil lock |
51403-MB7-611 |
US $12.48 |
||
|
6
|
6
51403-463-003 Pl.spg joint |
51403-463-003 |
US $3.70 |
||
|
7
|
7
51404-MB7-611 Seat, spring |
51404-MB7-611 |
from US $2.86 |
||
|
8
|
8
51405-MB7-611 Ring, stopper |
51405-MB7-611 |
from US $2.74 |
||
|
9
|
9
51410-MB9-781
Pipe,fr.fork
|
51410-MB9-781 |
— | ||
|
10
|
10
51411-MB9-781
Spring,rebound
|
51411-MB9-781 |
— | ||
|
11
|
11
51412-463-003 Ring, back-up |
51412-463-003 |
from US $6.07 |
||
|
12
|
12
51414-463-003 Bush, fork pipe |
51414-463-003 |
from US $10.95 |
||
|
13
|
13
51415-MB9-781 Bush,slider |
51415-MB9-781 |
from US $12.97 |
||
|
14
|
14
51417-MJ0-013 Packing |
51417-MJ0-013 |
US $5.77 |
||
|
15
|
15
51418-ME1-671
Spring,piston
|
51418-ME1-671 |
— | ||
|
16
|
16
51421-MB9-781
Case,r.bottom
|
51421-MB9-781 |
— | ||
|
17
|
17
51423-MC7-003
Collar,piston
|
51423-MC7-003 |
— | ||
|
18
|
18
51430-MB9-781
Case,r.piston
|
51430-MB9-781 |
— | ||
|
19
|
19
51432-MB7-611 Piece,oil lock |
51432-MB7-611 |
US $26.06 |
||
|
20
|
20
51433-MC7-003
Rod,adjuster
|
51433-MC7-003 |
— | ||
|
21
|
21
51434-MC7-003
Spring, click
|
51434-MC7-003 |
— | ||
|
22
|
22
51435-MC7-003 Washer (5mm) |
51435-MC7-003 |
from US $2.59 |
||
|
23
|
23
51436-ME1-671
Piston
|
51436-ME1-671 |
— | ||
|
24
|
24
51437-KAZ-003 Ring, piston |
51437-KAZ-003 |
from US $5.48 |
||
|
25
|
25
51438-MB9-781 Holder,grease |
51438-MB9-781 |
US $3.72 |
||
|
26
|
26
51439-MB9-781 Washer,holder |
51439-MB9-781 |
US $3.23 |
||
|
27
|
27
51440-MB9-781
Pipe,seat
|
51440-MB9-781 |
— | ||
|
28
|
28
51441-MC7-003 Rubber, stopper |
51441-MC7-003 |
from US $2.96 |
||
|
29
|
29
51442-MC7-003 Boot, piston case |
51442-MC7-003 |
from US $9.62 |
||
|
30
|
30
51443-MC7-013
Washer,r.side
|
51443-MC7-013 |
— | ||
|
31
|
31
51444-MC7-013
Washer,l.side
|
51444-MC7-013 |
— | ||
|
32
|
32
51445-MC7-003 Holder, boot |
51445-MC7-003 |
from US $6.79 |
||
|
33
|
33
51447-463-003 Circlip (inner) |
51447-463-003 |
from US $4.88 |
||
|
34
|
34
51450-MB7-611
Bolt,fr,fork
|
51450-MB7-611 |
— | ||
|
35
|
35
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
36
|
36
51457-469-000
Cap assy., air valve
|
51457-469-000 |
— | ||
|
37
|
37
51490-MB9-782 Seal set, fr. fork |
51490-MB9-782 |
from US $17.24 |
||
|
38
|
38
51500-MB9-662
Fork assy,l fr
|
51500-MB9-662 |
— | ||
|
39
|
39
51530-MB9-781
Case,l.piston
|
51530-MB9-781 |
— | ||
|
40
|
40
51555-MB7-611
Bolt,l.fr.fork
|
51555-MB7-611 |
— | ||
|
41
|
41
51601-463-000
Rub,fork cover up
|
51601-463-000 |
— | ||
|
42
|
42
51602-MB9-000
Cover r.fr.fork
|
51602-MB9-000 |
— | ||
|
46
|
46
51606-MB9-000
Cover l.fr.fork
|
51606-MB9-000 |
— | ||
|
48
|
48
51622-463-000
Rub,fork cover
|
51622-463-000 |
— | ||
|
49
|
49
51634-MB9-781
Holder, axle
|
51634-MB9-781 |
— | ||
|
50
|
50
52421-MB9-781
Case,l.bottom
|
52421-MB9-781 |
— | ||
|
51
|
51
53137-MB9-781
Hose comp.,joint
|
53137-MB9-781 |
— | ||
|
52
|
52
53139-463-000 Connector |
53139-463-000 |
US $26.38 |
||
|
53
|
53
53240-MB9-780
Stabilizer, fr. fork
|
53240-MB9-780 |
— | ||
|
56
|
56
96700-0601817 Bolt, socket (6x18) |
96700-0601817 |
US $0.59 |
||
|
57
|
57
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
58
|
58
90153-MB0-000
Bolt, socket (8x17)
|
90153-MB0-000 |
— | ||
| replacement | |||||
|
58
|
58
90153-MB0-405
Bolt, socket (8x17)
|
90153-MB0-405 |
— | ||
|
58
|
58
90153-MB0-405
Bolt, socket (8x17)
|
90153-MB0-405 |
— | ||
|
59
|
59
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
60
|
60
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
62
|
62
91254-463-003 Dust seal |
91254-463-003 |
from US $14.55 |
||
|
63
|
63
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
63
|
63
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
64
|
64
91302-MA3-661 O-ring,35.5x2 |
91302-MA3-661 |
from US $3.26 |
||
|
65
|
65
91303-MC7-003
O-ring,themo.body
|
91303-MC7-003 |
— | ||
|
66
|
66
91311-PH7-003 O-ring13.8X2.4 (NOK) |
91311-PH7-003 |
from US $1.55 |
||
|
67
|
67
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $1.78 |
||
|
68
|
68
91356-463-003 O-ring,29x3.5 |
91356-463-003 |
from US $5.10 |
||
|
69
|
69
91455-MB0-010 Cap (8mm) |
91455-MB0-010 |
from US $1.48 |
||
|
70
|
70
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
71
|
71
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
72
|
72
93500-040-200-B Screw,cross,4x20 |
93500-040-200-B |
US $0.52 |
||
|
73
|
73
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
74
|
74
93600-040-101-B Screw,flat,4x10 |
93600-040-101-B |
US $0.52 |
||
|
75
|
75
94001-040-200-S Nut, hex., 4mm |
94001-040-200-S |
US $0.44 |
||
|
77
|
77
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
78
|
78
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
79
|
79
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
82
|
82
9621105000 Ball, steel, #5 (5/32) |
9621105000 |
