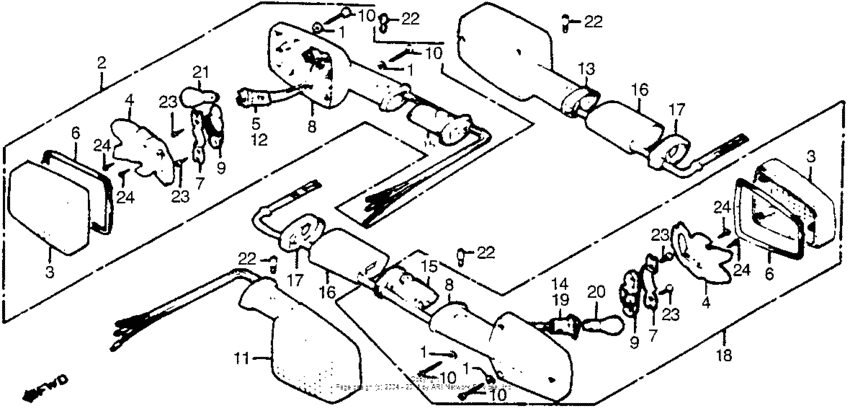

Gl1100 turn signal Diagram Honda GL1100 Gold Wing
- Year
- 1983
- Model code
- GL1100 A
- Sales region
- USA
- Frame
- 1HFSC020*DA300101 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33318-567-003 Washer |
33318-567-003 |
from US $1.85 |
||
|
2
|
2
33400-MA1-679
Turn signal, r. fr.
|
33400-MA1-679 |
— | ||
|
3
|
3
33402-431-782 Lens, turn signal |
33402-431-782 |
US $18.22 |
||
|
4
|
4
33403-431-782
Reflector
|
33403-431-782 |
— | ||
|
5
|
5
33405-425-672
Socket, r. fr.
|
33405-425-672 |
— | ||
|
6
|
6
33406-431-781
Gasket
|
33406-431-781 |
— | ||
|
7
|
7
33407-431-781
Holder, socket
|
33407-431-781 |
— | ||
|
8
|
8
33409-MA1-671
Base, turn signal
|
33409-MA1-671 |
— | ||
|
9
|
9
33411-431-782
Rubber, socket
|
33411-431-782 |
— | ||
|
10
|
10
33420-431-780
Screw, tap (4x25)
|
33420-431-780 |
— | ||
|
11
|
11
33400-MA1-679
Turn signal, r. fr.
|
33400-MA1-679 |
— | ||
|
12
|
12
33455-425-672
Socket, l. fr.
|
33455-425-672 |
— | ||
|
13
|
13
33650-MA1-679
Turn Signal, L. Rr.
|
33650-MA1-679 |
— | ||
|
14
|
14
33605-431-782 Socket, r. rr. |
33605-431-782 |
US $16.30 |
||
|
15
|
15
33609-445-631
Rubber, rr
|
33609-445-631 |
— | ||
|
16
|
16
33611-MB9-000
Cvr, rr. turn signal
|
33611-MB9-000 |
— | ||
|
17
|
17
33612-463-000
Rubber, rr
|
33612-463-000 |
— | ||
|
18
|
18
33650-MA1-679
Turn Signal, L. Rr.
|
33650-MA1-679 |
— | ||
|
19
|
19
33655-MA1-671
Socket comp.l.rr.
|
33655-MA1-671 |
— | ||
|
20
|
20
34905-268-671 Bulb (12v23w32cp) |
34905-268-671 |
from US $3.26 |
||
|
21
|
21
34905-425-671 Bulb (12v23/8w) |
34905-425-671 |
from US $4.29 |
||
|
22
|
22
90380-445-630 Screw, oval (5x8) |
90380-445-630 |
US $4.29 |
||
|
23
|
23
93901-22020 ScrewTAPPING, 3X6 |
93901-22020 |
from US $0.37 |
||
|
24
|
24
93901-24120 ScrewTAPPING, 4X8 |
93901-24120 |
from US $0.37 |
