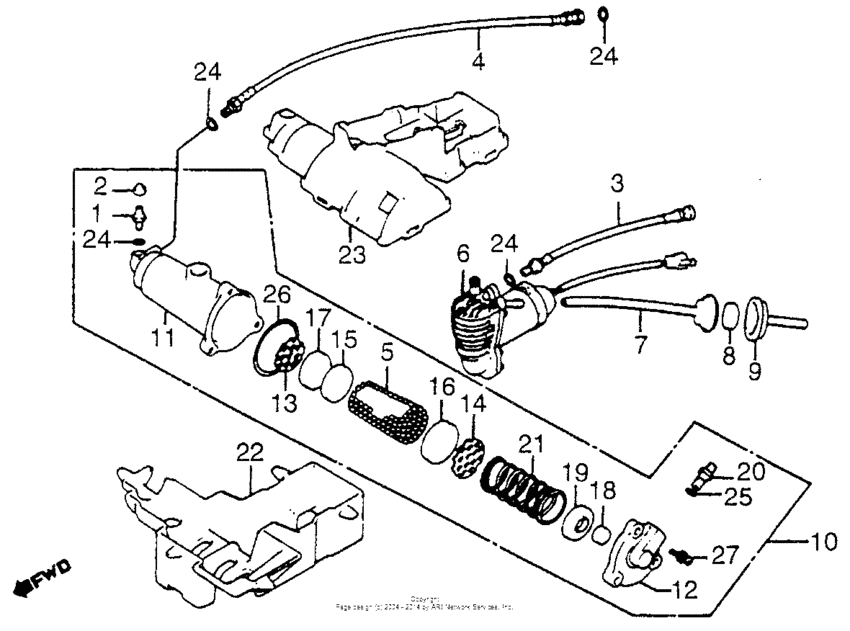

Gl1100a air pump + drier Diagram Honda GL1100 Gold Wing Aspencade
- Year
- 1983
- Model code
- GL1100A A
- Sales region
- USA
- Frame
- 1HFSC022*DA300101 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
2
|
2
51457-469-000
Cap assy., air valve
|
51457-469-000 |
— | ||
|
3
|
3
52640-MB9-871
Hose comp.c,air
|
52640-MB9-871 |
— | ||
|
4
|
4
52660-MB9-952
Hose comp.e,air
|
52660-MB9-952 |
— | ||
|
5
|
5
527A2-MB9-870
Desiccant
|
527A2-MB9-870 |
— | ||
|
6
|
6
52700-MB9-871
Pump assy., air
|
52700-MB9-871 |
— | ||
|
7
|
7
52705-MB9-870
Tube.a,air
|
52705-MB9-870 |
— | ||
|
8
|
8
52706-MB9-870
Element, pump
|
52706-MB9-870 |
— | ||
|
9
|
9
52707-MB9-870
Tube b, air
|
52707-MB9-870 |
— | ||
|
10
|
10
52710-MB9-951
Dryer assy
|
52710-MB9-951 |
— | ||
|
11
|
11
52711-MB9-951
Frame, drier
|
52711-MB9-951 |
— | ||
|
12
|
12
52712-MB9-951
Cover, drier
|
52712-MB9-951 |
— | ||
|
13
|
13
52713-MB9-870 Retainer |
52713-MB9-870 |
US $6.31 |
||
|
14
|
14
52714-MB9-870
Retainer
|
52714-MB9-870 |
— | ||
|
15
|
15
52715-MB9-870
Filter
|
52715-MB9-870 |
— | ||
|
16
|
16
52716-MB9-870
Filter
|
52716-MB9-870 |
— | ||
|
17
|
17
52717-MB9-870
Filter
|
52717-MB9-870 |
— | ||
|
18
|
18
52718-MB9-870
Filter
|
52718-MB9-870 |
— | ||
|
19
|
19
52719-MB9-870
Retainer
|
52719-MB9-870 |
— | ||
|
20
|
20
52721-MB9-951
Connector
|
52721-MB9-951 |
— | ||
|
21
|
21
52722-MB9-870
Spring
|
52722-MB9-870 |
— | ||
|
22
|
22
52756-MB9-870
Case,pump
|
52756-MB9-870 |
— | ||
|
23
|
23
52758-MB9-870
Cover,pump
|
52758-MB9-870 |
— | ||
|
24
|
24
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
24
|
24
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
25
|
25
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
26
|
26
91360-MB9-870 O-ring (49.7x3.5) |
91360-MB9-870 |
US $4.24 |
||
|
27
|
27
93893-040-200-8 Screw-washer4X20 |
93893-040-200-8 |
from US $0.52 |
