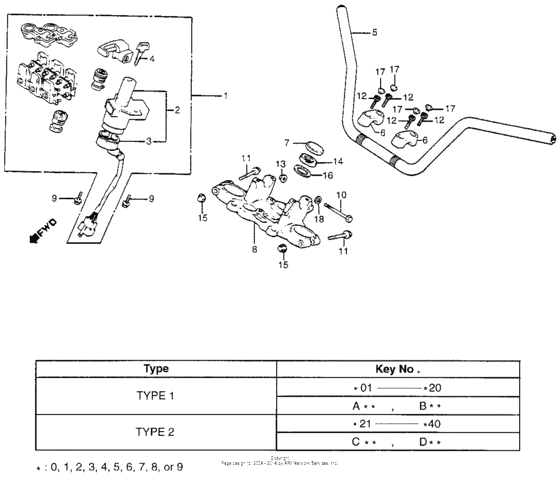

Gl1100a handlebar + key set Diagram Honda GL1100 Gold Wing Aspencade
- Year
- 1983
- Model code
- GL1100A A
- Sales region
- USA
- Frame
- 1HFSC022*DA300101 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35010-MB9-950
Key set
|
35010-MB9-950 |
— | ||
|
2
|
2
35100-MB9-951
Sw.comb lock
|
35100-MB9-951 |
— | ||
|
3
|
3
35101-MB9-951
Base comp contact
|
35101-MB9-951 |
— | ||
|
4
|
4
35121-KW3-771 Key, blank (type1)(Optional). |
35121-KW3-771 |
from US $8.58 |
||
|
4
|
4
35122-KW3-771 Key, blank (type2)(Optional). |
35122-KW3-771 |
from US $9.01 |
||
|
4
|
4
35122-MG9-810 Key, blank (type2)(Optional). |
35122-MG9-810 |
US $9.30 |
||
| replacement | |||||
|
4
|
4
35122-KW3-771 Key, blank (type2)(Optional). |
35122-KW3-771 |
from US $9.01 |
||
|
5
|
5
53100-MB9-950
Pipe,strg handle
|
53100-MB9-950 |
— | ||
|
6
|
6
53131-371-000 Hldr, handle (upper) |
53131-371-000 |
from US $16.59 |
||
|
7
|
7
53209-MB9-000
Cap, steering stem
|
53209-MB9-000 |
— | ||
|
8
|
8
53230-MB9-950
Bridge,fork top
|
53230-MB9-950 |
— | ||
|
9
|
9
90104-MJ1-000 Bolt, flange (8x19) |
90104-MJ1-000 |
from US $3.70 |
||
|
10
|
10
90127-463-000
Bolt,hex.,8x75
|
90127-463-000 |
— | ||
|
11
|
11
90155-329-790 Bolt,flange,7x54 |
90155-329-790 |
US $6.64 |
||
|
12
|
12
90185-371-000 Bolt (8x32) |
90185-371-000 |
from US $4.62 |
||
|
13
|
13
90202-425-870
Nut,flange,8mm
|
90202-425-870 |
— | ||
|
14
|
14
90304-371-000
Nut, steering stem
|
90304-371-000 |
— | ||
|
15
|
15
90360-428-900
Nut, cap. (7mm)
|
90360-428-900 |
— | ||
|
16
|
16
90503-283-000 Washer |
90503-283-000 |
from US $4.29 |
||
|
17
|
17
91456-371-770 Cap, socket bolt |
91456-371-770 |
from US $3.33 |
||
|
18
|
18
9410208200 Washer, flat (8mm) |
9410208200 |
from US $0.44 |
||
